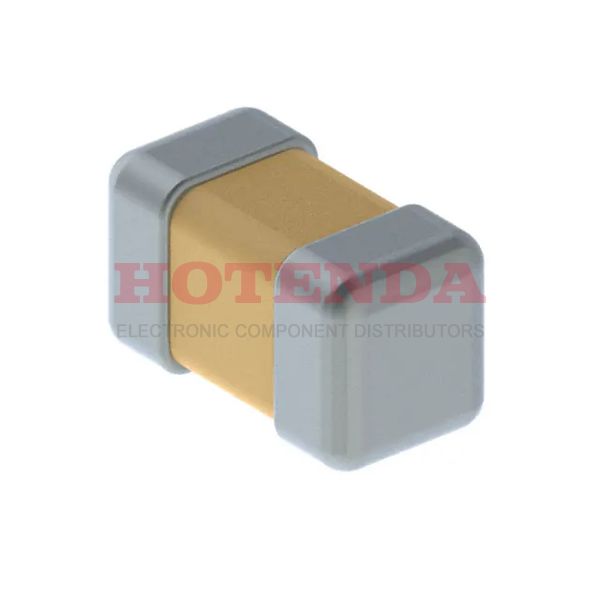

Name: CBR04C110J5GAC
Brand: KEMET
SKU: CBR04C110J5GAC
Price: 0.18000 USD
Availability: InStock

new-10%

CBR04C110J5GAC

Manufacturer part number:CBR04C110J5GAC

Manufacturer:KEMET

Description:CBR04C110J5GAC datasheet pdf and Ceramic Capacitors product details from KEMET stock available on our website

Case Package:SOT-23

Datasheet:CBR04C110J5GAC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	31 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	0402 (1005 Metric)
Terminal Shape	WRAPAROUND
Material	Ceramic
Weight	652.039032μg
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2016
Series	CBR-SMD RF C0G
Size / Dimension	0.039Lx0.020W 1.00mmx0.50mm
Tolerance	±5%
JESD-609 Code	e3
Feature	High Q, Low Loss, Ultra Low ESR
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Temperature Coefficient	C0G NP0
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	RF, Microwave, High Frequency
HTS Code	8532.24.00.20
Capacitance	11pF
Voltage - Rated DC	50V
Packing Method	TR, PUNCHED PAPER, 7 INCH
Case Code (Metric)	1005
Case Code (Imperial)	0402
Dielectric	C0G
Temperature Characteristics Code	C0G
Multilayer	Yes
Height	550μm
Length	1mm
Width	0.5mm
Thickness (Max)	0.022 0.55mm
Thickness	558.8μm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

CBR04C110J5GAC Product Details

CBR04C110J5GAC Overview

This device's program size/dimension is 0.039Lx0.020W 1.00mmx0.50mm.Temperature coefficient of resistance refers to the change in electrical resistance of a substance per degree change in temperature, with C0G NP0 being the highest temperature coefficient.A voltage of 50V can be used for operation.
