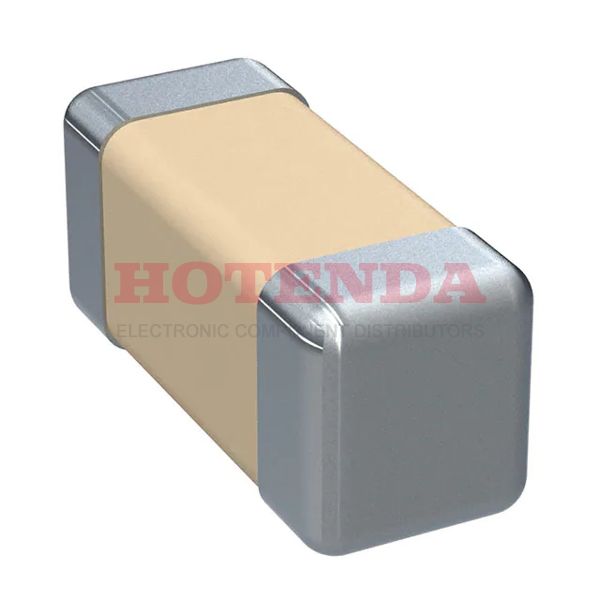

Name: CBR02C300G8GAC
Brand: KEMET
SKU: CBR02C300G8GAC
Price: 0.10000 USD
Availability: InStock

new-10%

CBR02C300G8GAC

Manufacturer part number:CBR02C300G8GAC

Manufacturer:KEMET

Description:CBR02C300G8GAC datasheet pdf and Ceramic Capacitors product details from KEMET stock available on our website

Case Package:SOT-23

Datasheet:CBR02C300G8GAC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	0201 (0603 Metric)
Terminal Shape	WRAPAROUND
Dielectric Material	CERAMIC
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2016
Series	CBR-SMD RF C0G
Size / Dimension	0.024Lx0.012W 0.60mmx0.30mm
Tolerance	±2%
JESD-609 Code	e3
Feature	High Q, Low Loss, Ultra Low ESR
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	C0G NP0
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	RF, Microwave, High Frequency
Voltage - Rated	10V
HTS Code	8532.24.00.20
Capacitance	30pF
Packing Method	TR, PUNCHED PAPER, 7 INCH
Capacitor Type	CERAMIC CAPACITOR
Temperature Characteristics Code	C0G
Multilayer	Yes
Rated (DC) Voltage (URdc)	10V
Height	0.3mm
Length	0.5mm
Width	0.3mm
Thickness (Max)	0.013 0.33mm
Thickness	330.2μm
RoHS Status	ROHS3 Compliant

CBR02C300G8GAC Product Details

CBR02C300G8GAC Overview

Ceramic capacitor is 0.024Lx0.012W 0.60mmx0.30mm in size/dimension for this device.Its coefficient is C0G NP0 and determines the change in resistance per degree of temperature for a substance.
