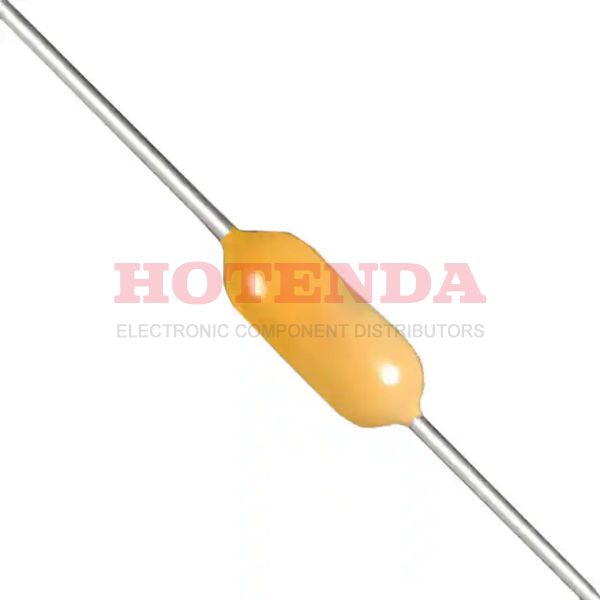

Name: C440C105Z5U5TA
Brand: KEMET
SKU: C440C105Z5U5TA
Price: 0.29000 USD
Availability: InStock

new-10%

C440C105Z5U5TA

Manufacturer part number:C440C105Z5U5TA

Manufacturer:KEMET

Description:1μF Ceramic Capacitor 80% -56/+22% ppm/°C 2 Terminations Axial

Case Package:SOT-23

Datasheet:C440C105Z5U5TA Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Package / Case	Axial
Terminal Shape	WIRE
Number of Terminals	2
Mounting Style	Through Hole
Capacitance Tolerance	-20%, +80%
Product Depth (mm)	Not Required(mm)
Wire Form	Not Required
Operating Temp Range	10C to 85C
Case Style	Dipped
Product Diameter (mm)	3.81(mm)
Temp Coeff (Dielectric)	Z5U
Lead Diameter (nom)	0.51(mm)
Tolerance (+ or -)	-20% to 80%
Rad Hardened	No
Microwave Application	NO
Seated Plane Height	Not Required(mm)
Packaging	Bulk
Tolerance	80%
JESD-609 Code	e3
Pbfree Code	yes
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	-56/+22% ppm/°C
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Max Operating Temperature	85°C
Min Operating Temperature	-10°C
HTS Code	8532.24.00.40
Capacitance	1μF
Voltage - Rated DC	50V
Technology	STANDARD
Construction	Axial
Termination Style	Axial
Capacitor Type	CERAMIC CAPACITOR
Dielectric	Z5U
Failure Rate	Not Required
Temperature Characteristics Code	Z5U
Multilayer	Yes
Lead Diameter	510 μm
Voltage	50VDC
Dissipation Factor	4 %
Product Length	6.6 mm
Product Width	3.81 x 10.16
Product Length (mm)	10.16(mm)
Length	6.6mm
Product Height (mm)	Not Required(mm)
Radiation Hardening	No
RoHS Status	RoHS Compliant

C440C105Z5U5TA Product Details

C440C105Z5U5TA Overview

Temperatures greater than -10°C are recommended for stable operation.Temperature coefficient of resistance refers to the change in electrical resistance of a substance per degree change in temperature, with -56/+22% ppm/°C being the highest temperature coefficient.The unit can operate at 50V Volts DC - Rated DC.
