C276CC34500AA0J

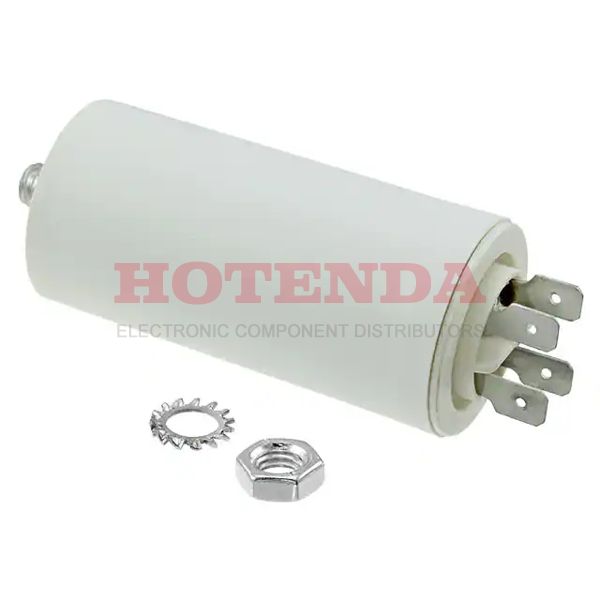

  • C276CC34500AA0J - C276 5μF Film Capacitor ±5% Radial, Can Quick Connect - 0.250 (6.3mm) 470V-DC 470V-AC Polypropylene (PP) Snap in
  • C276CC34500AA0J - C276 5μF Film Capacitor ±5% Radial, Can Quick Connect - 0.250 (6.3mm) 470V-DC 470V-AC Polypropylene (PP) Snap in

C276CC34500AA0J

C276CC34500AA0J

KEMET

C276 5μF Film Capacitor ±5% Radial, Can Quick Connect - 0.250 (6.3mm) 470V-DC 470V-AC Polypropylene (PP) Snap in

SOT-23

C276CC34500AA0J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 26 Weeks
Mount Snap in
Mounting Type Chassis, Stud Mount
Package / Case Radial, Can
Dielectric MaterialPolypropylene (PP)
Operating Temperature-25°C~85°C
PackagingBulk
Published 2002
Series C276
Size / Dimension 1.181Dia 30.00mm
Tolerance ±5%
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Quick Connect - 0.250 (6.3mm)
Applications Motor Run; Motor Start
Capacitance 5μF
Voltage - Rated DC 470V
Voltage - Rated AC 470V
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.528 13.40mm
Diameter 30mm
Height 56.5mm
Height Seated (Max) 2.303 58.50mm
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:1493 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$4.211947$4.211947
10$3.973535$39.73535
100$3.748618$374.8618
500$3.536432$1768.216
1000$3.336257$3336.257

C276CC34500AA0J Product Details

C276CC34500AA0J Overview


A 0.528 13.40mm lead spacing is used in this electrical device.In a temperature range of -25°C~85°C, the device can be operated.

C276CC34500AA0J Features




C276CC34500AA0J Applications


There are a lot of KEMET
C276CC34500AA0J applications of film capacitors.


  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
  • Filtering
  • IGBT
  • Compact fluorescent lamps (CFL)
