C276CC34250AA0J

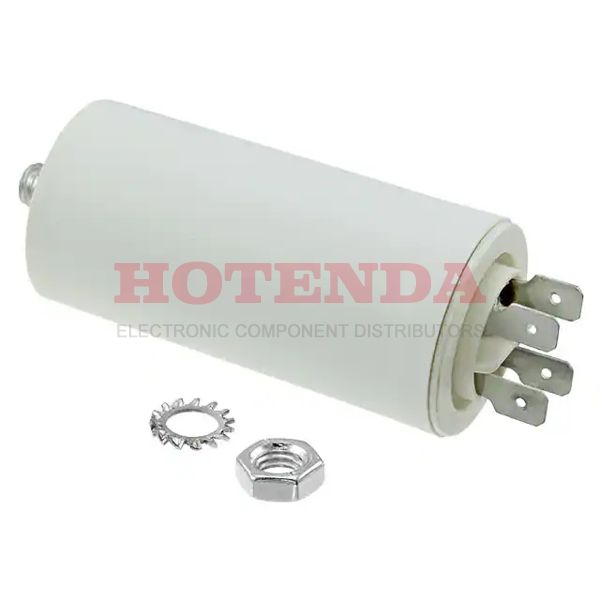

  • C276CC34250AA0J - C276 2.5μF Film Capacitor ±5% Radial, Can Quick Connect - 0.250 (6.3mm) 470V-AC Polypropylene (PP)
  • C276CC34250AA0J - C276 2.5μF Film Capacitor ±5% Radial, Can Quick Connect - 0.250 (6.3mm) 470V-AC Polypropylene (PP)

C276CC34250AA0J

C276CC34250AA0J

KEMET

C276 2.5μF Film Capacitor ±5% Radial, Can Quick Connect - 0.250 (6.3mm) 470V-AC Polypropylene (PP)

SOT-23

C276CC34250AA0J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 26 Weeks
Mounting Type Chassis, Stud Mount
Package / Case Radial, Can
Dielectric MaterialPolypropylene (PP)
Operating Temperature-25°C~85°C
PackagingBulk
Published 2015
Series C276
Size / Dimension 0.984Dia 25.00mm
Tolerance ±5%
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Quick Connect - 0.250 (6.3mm)
Applications Motor Run; Motor Start
Capacitance 2.5μF
Voltage - Rated AC 470V
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.528 13.40mm
Height 56.5mm
Height Seated (Max) 2.362 60.00mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
In-Stock:1962 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.721172$2.721172
10$2.567144$25.67144
100$2.421833$242.1833
500$2.284749$1142.3745
1000$2.155423$2155.423

C276CC34250AA0J Product Details

C276CC34250AA0J Overview


The lead spacing of this electrical device is 0.528 13.40mm.Temperatures as low as -25°C~85°C are suitable for the device.

C276CC34250AA0J Features



C276CC34250AA0J Applications


There are a lot of KEMET C276CC34250AA0J applications of film capacitors.

  • Audio/video equipment
  • Matching networks
  • Switch-mode power supplies
  • IGBT
  • Lighting
  • TV and monitor sets
  • Global positioning systems
  • Snubbering
  • Blocking
  • Industrial and automotive inverters
