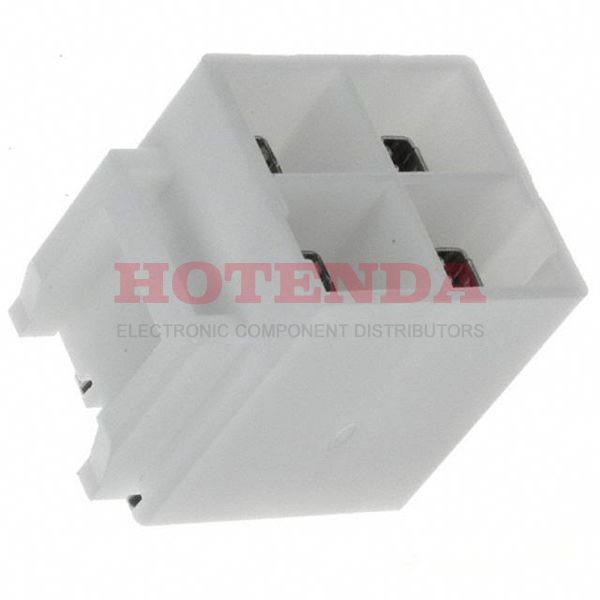

Name: B04P-VL
Brand: JST Sales America Inc.
SKU: B04P-VL
Price: 1.28000 USD
Availability: InStock

new-10%

B04P-VL

Manufacturer part number:B04P-VL

Manufacturer:JST Sales America Inc.

Description:B04P-VL datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from JST Sales America Inc. stock available on our website

Case Package:SOT-23

Datasheet:B04P-VL Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA66), Nylon 6/6
Material	Nylon
Operating Temperature	-25°C~90°C
Packaging	Bulk
Published	2002
Series	VL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	4
Number of Rows	2
Gender	Male
Fastening Type	Latch Holder
Voltage - Rated DC	600V
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Straight
Insulation Height	0.646 16.40mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	20A
Pitch - Mating	0.244 6.20mm
Insulation Color	Natural
Voltage - Rated AC	600V
Row Spacing - Mating	0.326 (8.28mm)
Contact Length - Post	0.142 3.60mm
Shrouding	Shrouded - 4 Wall
Lead Pitch	6.2mm
Empty Shell	NO
Contact Resistance	10mOhm
Insulation Resistance	1GOhm
Contact Current Rating	20A
Height	16.4mm
Length	13.4mm
Width	11.2mm
Stack Height (Mating)	29.2mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free

B04P-VL Product Details

B04P-VL Overview

The packaging is Header.Its mounting type is Through Hole.The product is packaged in a Bulk case.It's part of the VL Series.Through Hole is the mounting point for the part.-25°C~90°C Operating Temperature is the default.
