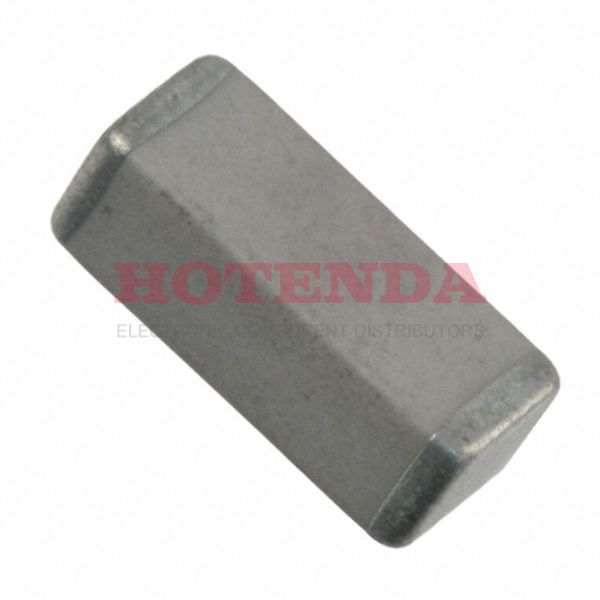

Name: 302R29N221KV3E-****-SC
Brand: Johanson Dielectrics Inc.
SKU: 302R29N221KV3E-****-SC
Price: 1.79000 USD
Availability: InStock

new-10%

302R29N221KV3E-****-SC

Manufacturer part number:302R29N221KV3E-****-SC

Manufacturer:Johanson Dielectrics Inc.

Description:302R29N221KV3E-****-SC datasheet pdf and Ceramic Capacitors product details from Johanson Dielectrics Inc. stock available on our website

Case Package:SOT-23

Datasheet:302R29N221KV3E-****-SC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	1808 (4520 Metric)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2012
Series	SC
Size / Dimension	0.189Lx0.080W 4.80mmx2.03mm
Tolerance	±10%
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	C0G NP0
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	Safety
Capacitance	220pF
Packing Method	TR, Embossed, 7 Inch
Depth	2.03mm
Voltage - Rated AC	250V
Case Code (Metric)	4520
Case Code (Imperial)	1808
Capacitor Type	CERAMIC CAPACITOR
Dielectric	C0G
Temperature Characteristics Code	NP0
Rated (DC) Voltage (URdc)	3000V
Size Code	1908
Height	2.16mm
Length	4.8mm
Thickness (Max)	0.085 2.16mm
Thickness	2.159mm
RoHS Status	ROHS3 Compliant
Ratings	X2

302R29N221KV3E-****-SC Product Details

302R29N221KV3E-****-SC Overview

Ceramic capacitor is 0.189Lx0.080W 4.80mmx2.03mm in size/dimension for this device.Temperature coefficient of resistance refers to the change in electrical resistance of a substance per degree change in temperature, with C0G NP0 being the highest temperature coefficient.
