Name: IL-AG5-10P-S3T2
Brand: JAE Electronics
SKU: IL-AG5-10P-S3T2
Price: 1.42000 USD
Availability: InStock

new-10%

IL-AG5-10P-S3T2

Manufacturer part number:IL-AG5-10P-S3T2

Manufacturer:JAE Electronics

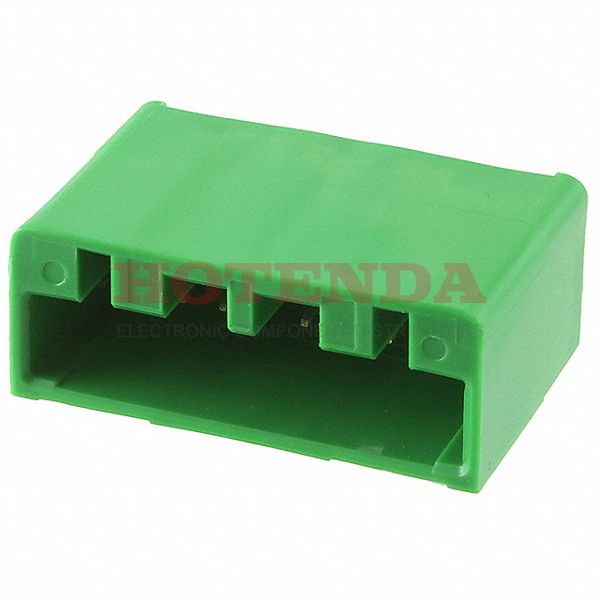

Description:IL-AG5 Series 1-Row Header Solder Brass Tube Through Hole Tin Polybutylene Terephthalate (PBT) 10-Position Board to Cable/Wire 0.717 18.20mm Height

Case Package:SOT-23

Datasheet:IL-AG5-10P-S3T2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-40°C~85°C
Packaging	Tube
Series	IL-AG5
Published	2003
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	10
Color	Green
Applications	Automotive
Number of Rows	1
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Contact Type	Male Pin
Current Rating (Amps)	3A per Contact
Pitch	2.4892mm
Insulation Height	0.717 18.20mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.098 2.50mm
Insulation Color	Green
Contact Length - Post	0.138 3.50mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
Contact Length - Mating	0.331 8.40mm
Overall Contact Length	0.594 15.09mm
Stack Height (Mating)	28.2mm
RoHS Status	RoHS Compliant

IL-AG5-10P-S3T2 Product Details

IL-AG5-10P-S3T2 Overview

It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Tube case is used.It belongs to the IL-AG5 Series of products.Automotive is a possible application for the device.The part is mounted by Through Hole.The device runs in -40°C~85°C Operating Temperature.
