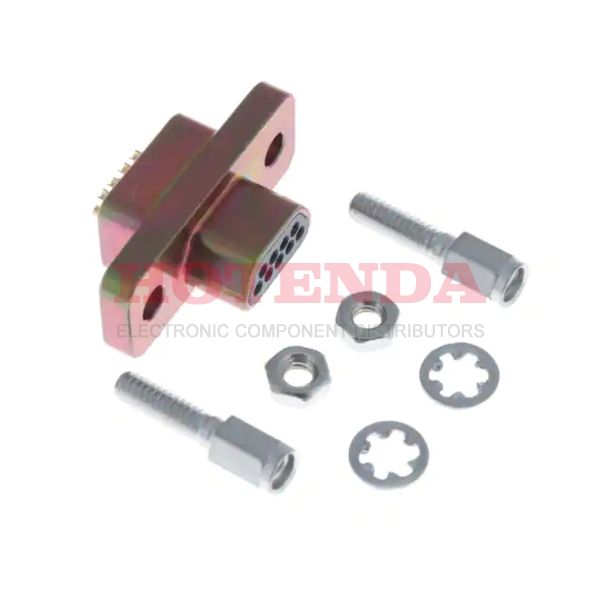

Name: MDM-9PSP
Brand: ITT Cannon, LLC
SKU: MDM-9PSP
Price: 104.60000 USD
Availability: InStock

new

MDM-9PSP

Manufacturer part number:MDM-9PSP

Manufacturer:ITT Cannon, LLC

Description:MDM-9PSP datasheet pdf and D-Sub Connectors product details from ITT Cannon, LLC stock available on our website

Case Package:SOT-23

Datasheet:MDM-9PSP Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Contact Material	Copper Alloy
Mount	Panel
Mounting Type	Panel Mount
Dielectric Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Shell Material, Finish	Aluminum, Yellow Chromate Plated Cadmium
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2002
Series	83513-Style Micro D Metal Shell (MDM)
Feature	Shielded
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder Cup
Connector Type	Plug, Male Pins
Number of Positions	9
Number of Rows	2
Gender	Male
Filter Feature	NO
Contact Type	Signal
Mixed Contacts	NO
Option	GENERAL PURPOSE
Total Number of Contacts	9
Orientation	Straight
Depth	15.65mm
Current Rating	3A
Shell Finish	CADMIUM OVER NICKEL
Number of Conductors	ONE
Contact Finish	Gold
Mating Information	NO
Empty Shell	NO
Rated Current (Signal)	3A
Contact Style	Pin
Contact Resistance	8mOhm
Insulation Resistance	5000000000Ohm
Flange Feature	Mating Side, Female Screwlock (2-56)
Dielectric Withstanding Voltage	600VAC V
Connector Style	D-Type, Micro-D
Number of Ports	1
Durability	500 Cycles
Shell Size, Connector Layout	0.050 Pitch x 0.043 Row to Row
Contact Design	PREASSEM CONN
Length	19.94mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	Non-RoHS Compliant

MDM-9PSP Product Details

MDM-9PSP Overview

The product is packaged in Plug, Male Pins.A Panel Mount mounting type is specified for the device.Packaging for the product is carried out via a Bulk case.A member of the 83513-Style Micro D Metal Shell (MDM) Series.The device is equipped with 1 ports for the management of a variety of tasks.It is more powerful in many ways due to its Shielded feature.Panel mounts the part.As a result, the device runs at -55°C~125°C Operating Temperature.
