Name: DCMAM-37S
Brand: ITT Cannon, LLC
SKU: DCMAM-37S
Price: 114.78000 USD
Availability: InStock

new

DCMAM-37S

Manufacturer part number:DCMAM-37S

Manufacturer:ITT Cannon, LLC

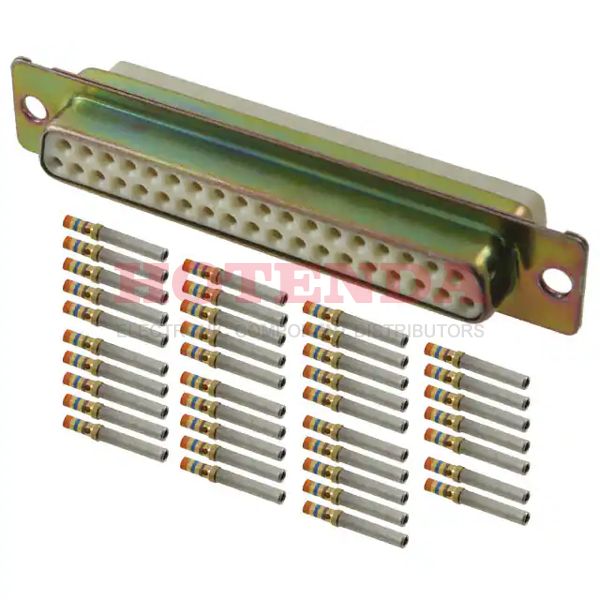

Description:24308-Style, D*MAM Series D-Sub Receptacle, Female Sockets 37-Position Signal Crimp 4 DC C Panel Mount Copper Alloy Gold Steel, Tin Plated

Case Package:SOT-23

Datasheet:DCMAM-37S Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	21 Weeks
Contact Material	Copper Alloy
Mounting Type	Panel Mount
Insulation Material	GLASS FILLED DIALLYL PHTHALATE
Dielectric Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Shell Material, Finish	Steel, Tin Plated
Operating Temperature	-55°C~150°C
Packaging	Bulk
Published	2011
Series	24308-Style, D*MAM
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Crimp
Connector Type	Receptacle, Female Sockets
Number of Positions	37
Color	Black
Number of Rows	2
Subcategory	D Type Connectors
MIL Conformance	YES
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Signal
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	7.5A
Total Number of Contacts	37
Shell Finish	CHROMATE
Contact Finish	Gold
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Body Breadth	0.494 inch
Empty Shell	NO
Body Depth	0.186 inch
Contact Resistance	55mOhm
Flange Feature	Housing/Shell (Unthreaded)
Mating Contact Pitch	0.108 inch
Dielectric Withstanding Voltage	1500VAC V
Connector Style	D-Sub
Contact Form	Machined
Shell Size, Connector Layout	4 DC C
Contact Design	PREASSEM CONN
Wire Size (Min)	30 AWG
Wire Size (Max)	18 AWG
Contact Finish Thickness	50.0μin 1.27μm
Plating Thickness	50μin
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant

DCMAM-37S Product Details

DCMAM-37S Overview

A Receptacle, Female Sockets packaging is included.There is a Panel Mount mounting type for the device.Packaged in a Bulk case.A product of the 24308-Style, D*MAM Series, it belongs to the range of products of that series.-55°C~150°C Operating Temperature is what the device runs at.
