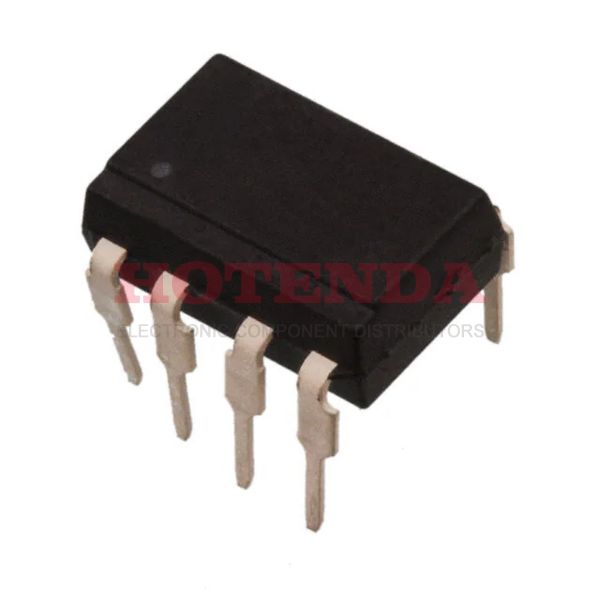

MCT6X datasheet pdf and Optoisolators - Transistor, Photovoltaic Output product details from Isocom Components 2004 LTD stock available on our website
SOT-23
MCT6X Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
2 Weeks
Mounting Type
Through Hole
Package / Case
8-DIP (0.300, 7.62mm)
Surface Mount
NO
Number of Pins
8
Operating Temperature
-25°C~100°C
Packaging
Tube
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Additional Feature
UL RECOGNIZED, VDE APPROVED
Voltage - Isolation
5300Vrms
Output Voltage
30V
Output Type
Transistor
Number of Elements
2
Number of Channels
2
Power Dissipation-Max
0.15W
Voltage - Forward (Vf) (Typ)
1.5V Max
Input Type
DC
Rise / Fall Time (Typ)
4μs 3μs
Current - Output / Channel
50mA
Forward Current-Max
0.05A
Forward Voltage-Max
1.5V
Current Transfer Ratio (Min)
20% @ 10mA
Input Current
20mA
Vce Saturation (Max)
400mV
Current Transfer Ratio
20%
Dark Current-Max
100nA
REACH SVHC
No SVHC
RoHS Status
ROHS3 Compliant
In-Stock:8832 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.85000
$0.85
10
$0.66000
$6.6
25
$0.54720
$13.68
100
$0.47180
$47.18
250
$0.41516
$103.79
800
$0.31324
$250.592
MCT6X Product Details
Isocom Components 2004 LTD's MCT6X family of opto-isolators feature a two-channel, 16DIP transistor and photovoltaic output. The device is powered by a 5.3kV isolated voltage and offers high resistance on both of its channels. It also features excellent isolation voltage, up to 6kV peak, and advanced photo-coupler technology. The MCT6X offers an effective way to monitor and protect fragile circuits from electrical noise, excessive voltages and other faults. It's suitable for a wide range of industrial and commercial applications, including motion detectors, medical equipment, home appliances, and security systems. It's available in a wide range of sizes and configurations, making it easy to find a solution that works for almost any application.
