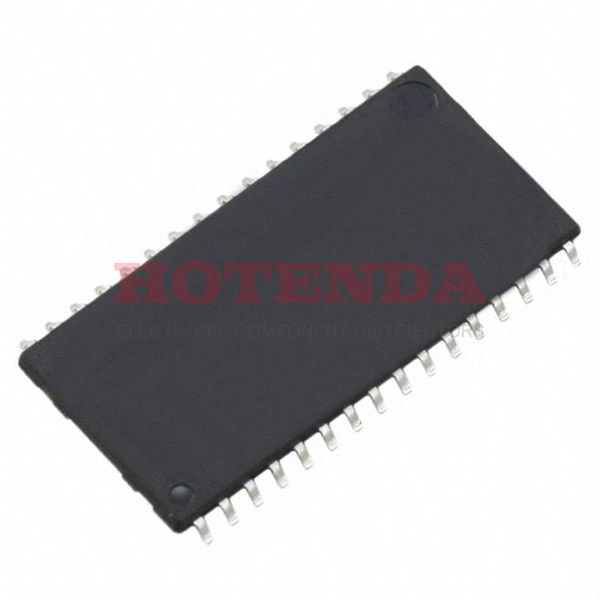

Name: IDT71V124SA10PH
Brand: Integrated Device Technology (IDT)
SKU: IDT71V124SA10PH
Availability: InStock

new-10%

IDT71V124SA10PH

Manufacturer part number:IDT71V124SA10PH

Manufacturer:Integrated Device Technology (IDT)

Description:3.3V V 32 Pin Memory IC 20.95mm mm

Case Package:SOT-23

Datasheet:IDT71V124SA10PH Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	SOIC
Surface Mount	YES
Published	2007
JESD-609 Code	e0
Pbfree Code	no
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	32
ECCN Code	3A991.B.2.B
Terminal Finish	Tin/Lead (Sn85Pb15)
Max Operating Temperature	70°C
Min Operating Temperature	0°C
HTS Code	8542.32.00.41
Subcategory	SRAMs
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	225
Number of Functions	1
Supply Voltage	3.3V
Terminal Pitch	1.27mm
Time@Peak Reflow Temperature-Max (s)	30
Pin Count	32
JESD-30 Code	R-PDSO-G32
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	3.3V
Temperature Grade	COMMERCIAL
Supply Voltage-Min (Vsup)	3.15V
Interface	Parallel
Memory Type	RAM, SRAM - Asynchronous
Supply Current-Max	0.145mA
Organization	128KX8
Output Characteristics	3-STATE
Memory Width	8
Standby Current-Max	0.01A
Memory Density	1048576 bit
Access Time (Max)	10 ns
I/O Type	COMMON
Standby Voltage-Min	3.15V
Length	20.95mm
Height Seated (Max)	1.2mm
Width	10.16mm
RoHS Status	RoHS Compliant

IDT71V124SA10PH Product Details

IDT71V124SA10PH Overview

Its memory type can be classified as RAM, SRAM - Asynchronous. It is available in SOIC case. 32 terminations are planted on the chip. This part supports as many as 1 functions for the comprehensive working procedure. This ic memory chip is designed to be supplied with 3.3V. This memory device has 32 pins, indicating it has 32 memory locations. Talking about power supplies, this memory chip requires merely 3.3V. This device has COMMON-bit memory mapped I/O port addresses. The minimum operating temperature of this device must not be less than 0°C. It is recommended for operation at temperatures no higher than. It is able to operate from a max supply current of 0.145mA. Usually, this memory ics is regarded as a type of SRAMs.
