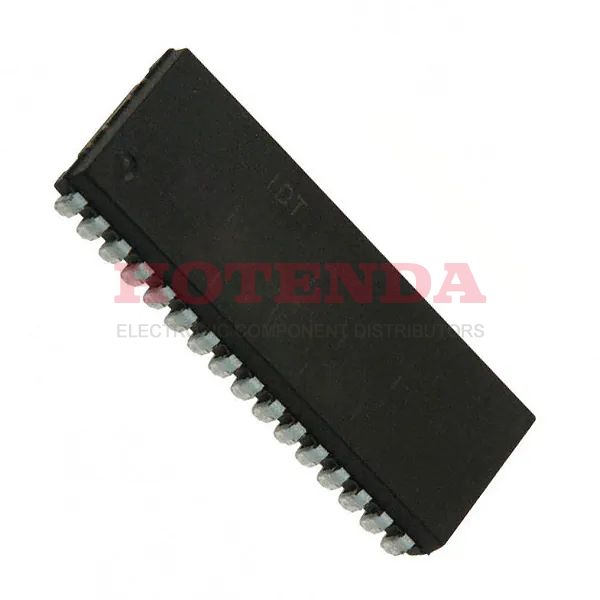

Name: IDT71024S20YI8
Brand: Integrated Device Technology (IDT)
SKU: IDT71024S20YI8
Availability: InStock

new-10%

IDT71024S20YI8

Manufacturer part number:IDT71024S20YI8

Manufacturer:Integrated Device Technology (IDT)

Description:5V V 32 Pin Memory IC 20.955mm mm

Case Package:SOT-23

Datasheet:IDT71024S20YI8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Surface Mount	YES
Number of Pins	32
Packaging	Tape & Reel (TR)
Published	2010
JESD-609 Code	e0
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	32
ECCN Code	3A991.B.2.B
Terminal Finish	Tin/Lead (Sn85Pb15)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Subcategory	SRAMs
Technology	CMOS
Terminal Position	DUAL
Terminal Form	J BEND
Peak Reflow Temperature (Cel)	225
Number of Functions	1
Supply Voltage	5V
Terminal Pitch	1.27mm
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	30
Pin Count	32
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	5V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	4.5V
Interface	Parallel
Number of Ports	1
Memory Type	RAM, SRAM - Asynchronous
Supply Current-Max	0.14mA
Organization	128KX8
Output Characteristics	3-STATE
Memory Width	8
Standby Current-Max	0.01A
Memory Density	1048576 bit
Access Time (Max)	20 ns
I/O Type	COMMON
Standby Voltage-Min	4.5V
Output Enable	YES
Length	20.955mm
Height Seated (Max)	3.683mm
Width	10.16mm
RoHS Status	Non-RoHS Compliant

IDT71024S20YI8 Product Details

IDT71024S20YI8 Overview

RAM, SRAM - Asynchronous is the type of memory it has. There is a Tape & Reel (TR) case available. The chip has 32 terminations. For a comprehensive working procedure, this part supports as many as 1 functions. In order to operate this memory device, it must be supplied with 5V of power. The memory device is enclosed in a package with an 32-pin connector. There are 32 pins on this memory device, which indicates it has 32 memory locations in it. A memory address is accessed through 1 ports on this chip. When it comes to power supplies, this memory chip only requires 5V . I/O port addresses on this device are mapped to memory addresses of COMMON bits. This device must operate at a minimum temperature of -40°C. Temperatures no higher than 85°C degrees Celsius are recommended for operation. A maximum supply current of 0.14mA can be used to operate this device. It is usually considered a type of SRAMs component.
