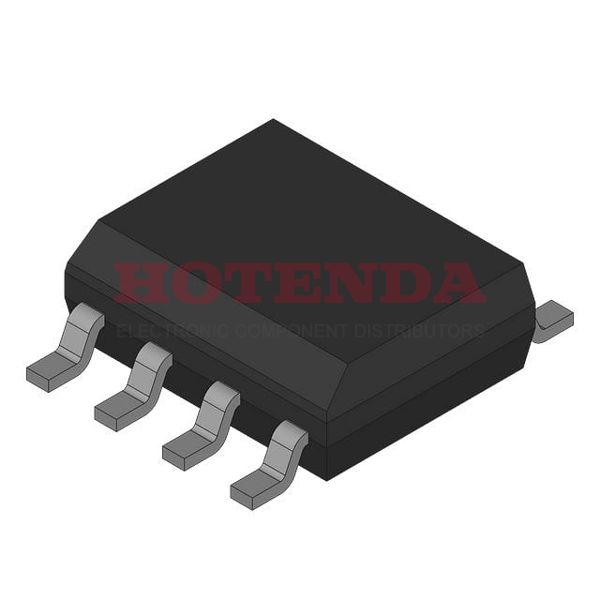

Name: TLE4279G
Brand: Infineon Technologies AG
SKU: TLE4279G
Availability: InStock

new-10%

TLE4279G

Manufacturer part number:TLE4279G

Manufacturer:Infineon Technologies AG

Description:1.27mm PMIC 8

Case Package:SOT-23

Datasheet:TLE4279G Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Surface Mount	YES
Number of Terminals	8
Pbfree Code	icon-pbfree no
Moisture Sensitivity Level (MSL)	2A (4 Weeks)
ECCN Code	EAR99
HTS Code	8542.39.00.01
Subcategory	Other Regulators
Technology	BIPOLAR
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	1.27mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	8
JESD-30 Code	R-PDSO-G8
Number of Outputs	1
Qualification Status	Not Qualified
Input Voltage (Min)	6V
Input Voltage (Max)	26V
Dropout Voltage1-Nom	0.5V
Output Voltage1-Max	5.1V
Output Voltage1-Min	4.9V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2%
Output Current1-Max	0.1A
Dropout Voltage1-Max	0.5V
Operating Temperature TJ-Max	125°C
Input Voltage Absolute-Max	45V
Adjustability	FIXED
Load Regulation-Max(%)	0.03%
Line Regulation-Max (%/V)	0.04%
Operating Temperature TJ-Min	-40°C
Output Voltage1-Nom	5V
Length	5mm
Height Seated (Max)	1.75mm
Width	4mm
RoHS Status	RoHS Compliant

TLE4279G Product Details

TLE4279G Overview

There are 8 pins in total on this board. Featuring 1 outputs in total, this voltage regulator IC enables prompt, sufficient performance regardless of the application. I would describe this component as a typical Other Regulators component. In this case, the regulator type is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR, which corresponds to this voltage regulator IC.
