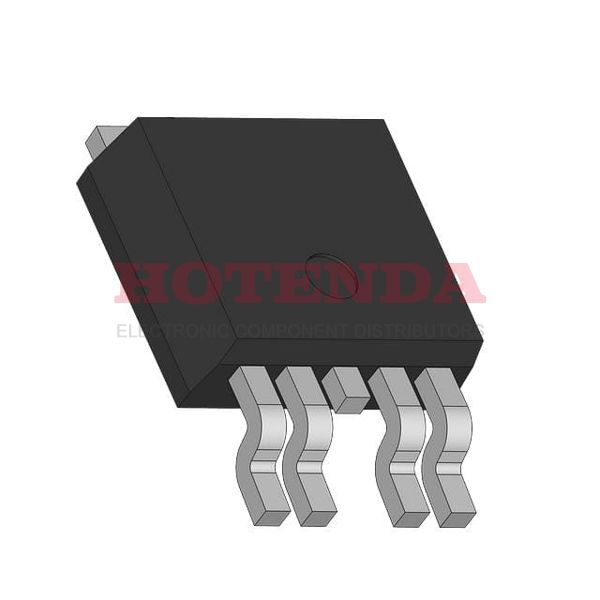

Name: TLE4270-2D
Brand: Infineon Technologies AG
SKU: TLE4270-2D
Availability: InStock

new-10%

TLE4270-2D

Manufacturer part number:TLE4270-2D

Manufacturer:Infineon Technologies AG

Description:1.14mm PMIC 4

Case Package:SOT-23

Datasheet:TLE4270-2D Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Surface Mount	YES
Number of Terminals	4
JESD-609 Code	e3
Pbfree Code	icon-pbfree yes
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
HTS Code	8542.39.00.01
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	1.14mm
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	4
JESD-30 Code	R-PSSO-G4
Number of Outputs	1
Qualification Status	Not Qualified
Input Voltage (Min)	6V
Input Voltage (Max)	42V
Dropout Voltage1-Nom	0.35V
Output Voltage1-Max	5.1V
Output Voltage1-Min	4.9V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2%
Output Current1-Max	0.65A
Dropout Voltage1-Max	0.7V
Screening Level	AEC-Q100
Operating Temperature TJ-Max	125°C
Input Voltage Absolute-Max	65V
Adjustability	FIXED
Load Regulation-Max(%)	0.05%
Line Regulation-Max (%/V)	0.025%
Operating Temperature TJ-Min	-40°C
Output Voltage1-Nom	5V
Width	6.22mm
Height Seated (Max)	2.35mm
Length	6.5mm
RoHS Status	RoHS Compliant

TLE4270-2D Product Details

TLE4270-2D Overview

4 pins make up the sum of this IC voltage regulator. As a result of this IC voltage regulator's 1 outputs, it ensures prompt, adequate performance for all your applications. This device is controlled by a FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type regulator.
