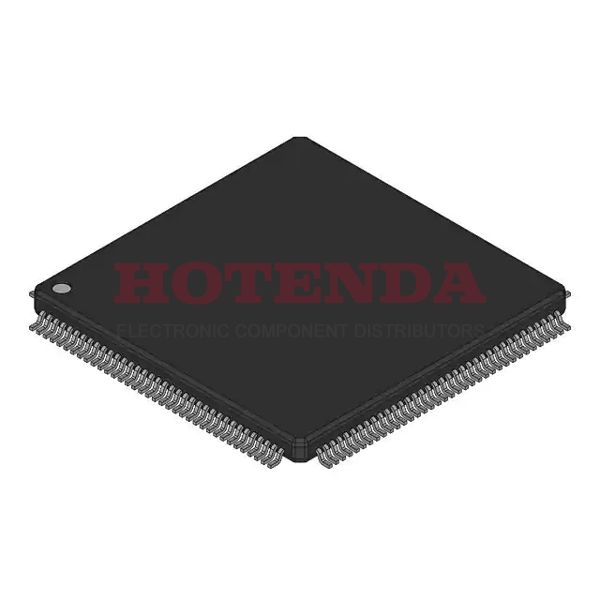

Name: XMC4500F144F1024AB
Brand: Infineon Technologies
SKU: XMC4500F144F1024AB
Availability: InStock

new-10%

XMC4500F144F1024AB

Manufacturer part number:XMC4500F144F1024AB

Manufacturer:Infineon Technologies

Description:Microcontroller 144 Pin 120MHz 3.3V LQFP

Case Package:SOT-23

Datasheet:XMC4500F144F1024AB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	LQFP
Surface Mount	YES
Number of Pins	144
Number of Terminations	144
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Technology	CMOS
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Frequency	120MHz
Operating Supply Voltage	3.3V
Temperature Grade	AUTOMOTIVE
Interface	CAN, EBI/EMI, Ethernet, I2C, LIN, SPI, UART, USB
Max Supply Voltage	3.63V
Min Supply Voltage	3.13V
Memory Size	1MB
Oscillator Type	Internal
Number of I/O	91
RAM Size	160kB
Memory Type	FLASH
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Peripherals	DMA, POR, PWM, WDT
Bit Size	32
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
Halogen Free	Halogen Free
DAC Channels	YES
Number of Timers/Counters	4
Core Architecture	ARM
On Chip Program ROM Width	8
Length	20mm
Height Seated (Max)	1.6mm
Width	20mm
Radiation Hardening	No
RoHS Status	RoHS Compliant

XMC4500F144F1024AB Product Details

XMC4500F144F1024AB Overview

The package has a LQFP shape. With 91 I/Os, it's pretty good. The IC chip fits into the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. There are 144 terminations on the IC chip. 32-bits are the size of the data that comes with MCU. A 3.3V volt supply is provided by the Microcontroller chip. In addition to that, MCU chip has YES DMA channels. Its memory size is 1MB. An effective performance can be achieved at a frequency of 120MHz. There are a total of YES channels in the device. It is possible to access the 144 pins on the chip. In total, it has 4 timers and counters in it. The equipment on this page features FLASH memory technology. This device features a ARM core architecture.
