TLE72742EXUMA1 Overview

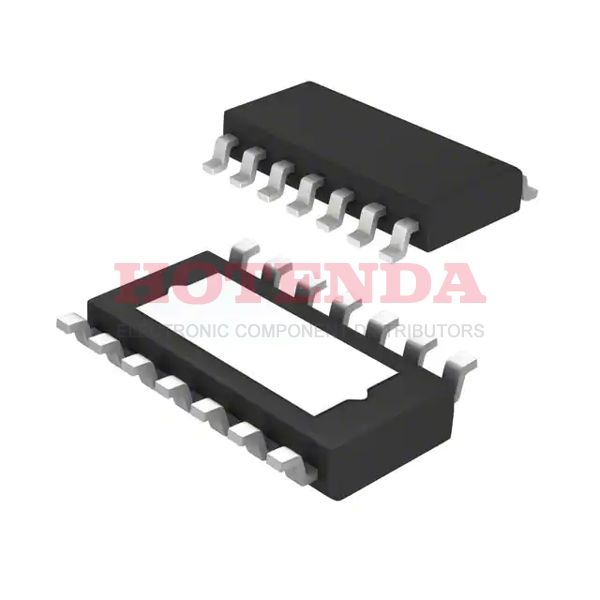

Deliveries are in Tape & Reel (TR) cases. The package is in a 14-LSSOP (0.154, 3.90mm Width) Exposed Pad case. Basically, the voltage regulator chip is made up of 14 terminations. In this case, Fixed represents the output type of the Voltage Regulated IC. This part implements 1 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~150°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. There is a voltage dropout of 10 volts for this IC regulator. Several pins on the chip are 14-shaped. As an FYI, this IC voltage regulator has the basic part number TLE7274. The maximal output current reaches 300mA to meet the operating requirements. It operates in the 20A Quiescent Current state. As part of the Automotive, AEC-Q100, OPTIREG™ Series, this IC voltage regulator belongs to that category. The top supply voltage can be set to 45V volts.
TLE72742EXUMA1 Features
250mV dropout voltage
TLE72742EXUMA1 Applications
There are a lot of Infineon Technologies
TLE72742EXUMA1 Linear Voltage Regulators applications.
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
