Name: SPP18P06PHKSA1
Brand: Infineon Technologies
SKU: SPP18P06PHKSA1
Availability: InStock

new-10%

SPP18P06PHKSA1

Manufacturer part number:SPP18P06PHKSA1

Manufacturer:Infineon Technologies

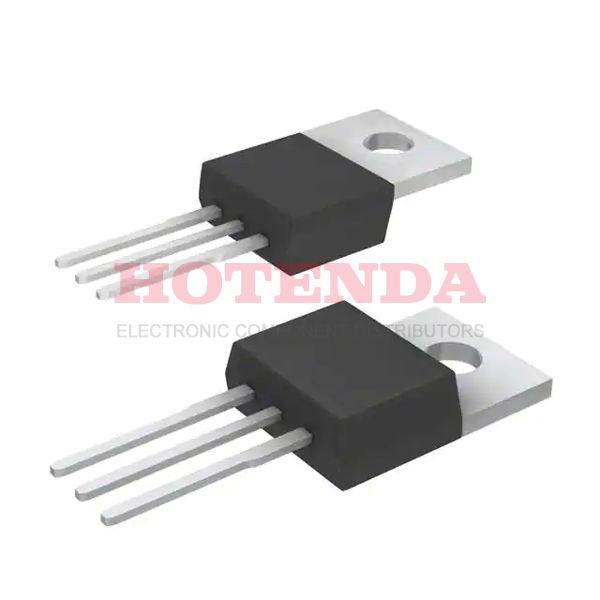

Description:Trans MOSFET P-CH 60V 18.7A 3-Pin (3+Tab) TO-220AB Tube

Case Package:SOT-23

Datasheet:SPP18P06PHKSA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	TO-220-3
Surface Mount	NO
Transistor Element Material	SILICON
Operating Temperature	-55°C~175°C TJ
Packaging	Tube
Published	2006
Series	SIPMOS®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Additional Feature	AVALANCHE RATED
Technology	MOSFET (Metal Oxide)
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	compliant
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-PSFM-T3
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	81.1W Ta
Operating Mode	ENHANCEMENT MODE
Case Connection	DRAIN
FET Type	P-Channel
Rds On (Max) @ Id, Vgs	130m Ω @ 13.2A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds	860pF @ 25V
Current - Continuous Drain (Id) @ 25°C	18.7A Ta
Gate Charge (Qg) (Max) @ Vgs	28nC @ 10V
Drain to Source Voltage (Vdss)	60V
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
JEDEC-95 Code	TO-220AB
Drain Current-Max (Abs) (ID)	18.6A
Drain-source On Resistance-Max	0.13Ohm
Pulsed Drain Current-Max (IDM)	74.4A
DS Breakdown Voltage-Min	60V
Avalanche Energy Rating (Eas)	150 mJ
RoHS Status	RoHS Compliant

About SPP18P06PHKSA1

The SPP18P06PHKSA1 from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features Trans MOSFET P-CH 60V 18.7A 3-Pin (3+Tab) TO-220AB Tube.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the SPP18P06PHKSA1, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
