Name: IRU1010-25CP
Brand: Infineon Technologies
SKU: IRU1010-25CP
Availability: InStock

new-10%

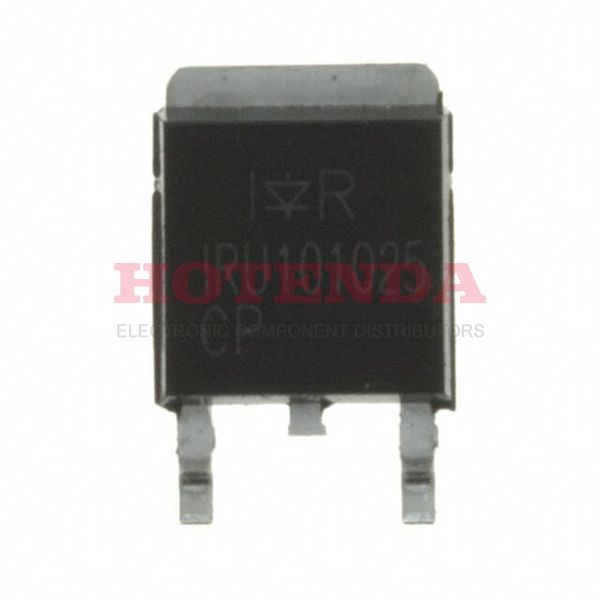

IRU1010-25CP

Manufacturer part number:IRU1010-25CP

Manufacturer:Infineon Technologies

Description:Fixed 2.285mm IRU1010-25CP PMIC 2-Ultra Thin-Pak™

Case Package:SOT-23

Datasheet:IRU1010-25CP Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	2-Ultra Thin-Pak™
Surface Mount	YES
Operating Temperature	0°C~125°C
Packaging	Tube
Published	2005
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	2.285mm
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	IRU1010-25CP
JESD-30 Code	R-PSSO-G2
Qualification Status	Not Qualified
Voltage - Input (Max)	7V
Output Type	Fixed
Output Configuration	Positive
Current - Output	1A
Output Voltage 1	2.5V
Input Voltage (Min)	4.75V
Voltage - Output (Min/Fixed)	2.5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Voltage Dropout (Max)	1.3V @ 1A
PSRR	70dB (120Hz)
Output Voltage1-Max	2.55V
Output Voltage1-Min	2.45V
Width	6.04mm
RoHS Status	Non-RoHS Compliant

IRU1010-25CP Product Details

IRU1010-25CP Overview

In the case of Tube cases, the regulater IC is delivered. Packaging of the Liner regulator IC takes the form of a 2-Ultra Thin-Pak™ case. The PMIC chip has 2 terminations. Fixed is the Voltage Regulator Chip's output type. Linear IC consists of 1 battery regulators. The range of operating temperatures of Surface Mount are programmable in the Voltage Regulator Chip, so that the temperature can be varied as desired. Keeping the temperature at 0°C~125°C degrees is necessary for this regulator to function. There is an output function of Positive configured for this regulator. Currently, 1A are being output by it at the moment. Here's the basic part number for this IC regulator: IRU1010-25CP.
