Name: IRU1010-25CD
Brand: Infineon Technologies
SKU: IRU1010-25CD
Availability: InStock

new-10%

IRU1010-25CD

Manufacturer part number:IRU1010-25CD

Manufacturer:Infineon Technologies

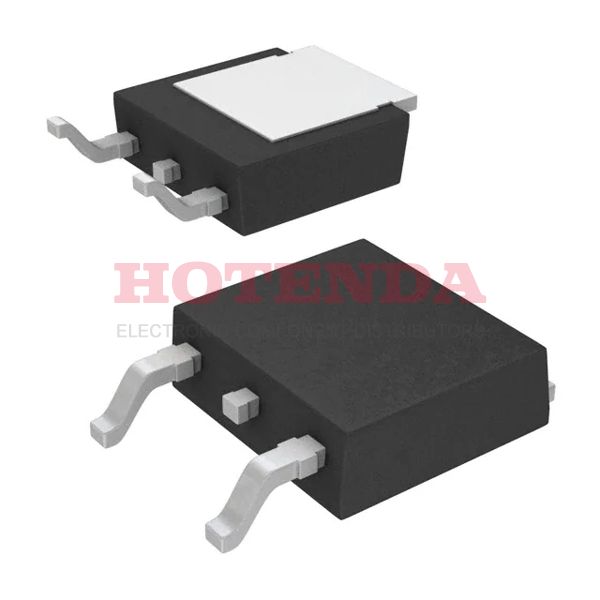

Description:Fixed 2.285mm IRU1010-25CD PMIC TO-252-3, DPak (2 Leads + Tab), SC-63

Case Package:SOT-23

Datasheet:IRU1010-25CD Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Surface Mount	YES
Operating Temperature	0°C~125°C
Packaging	Tube
Published	2005
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Terminal Finish	MATTE TIN OVER NICKEL
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	2.285mm
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	IRU1010-25CD
JESD-30 Code	R-PSSO-G2
Qualification Status	Not Qualified
Voltage - Input (Max)	7V
Output Type	Fixed
Output Configuration	Positive
Current - Output	1A
Output Voltage 1	2.5V
Input Voltage (Min)	4.75V
Voltage - Output (Min/Fixed)	2.5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Voltage Dropout (Max)	1.3V @ 1A
PSRR	70dB (120Hz)
Output Voltage1-Max	2.55V
Output Voltage1-Min	2.45V
Length	6.604mm
Height Seated (Max)	2.49mm
Width	6.096mm
RoHS Status	Non-RoHS Compliant

IRU1010-25CD Product Details

IRU1010-25CD Overview

Tube cases are used for delivery. The Liner regulator IC is packaged in TO-252-3, DPak (2 Leads + Tab), SC-63 case. On the Linear IC itself, there are 2 terminations. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to 0°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 1A from this regulator IC. For your information, the basic part number for this regulator IC is IRU1010-25CD.
