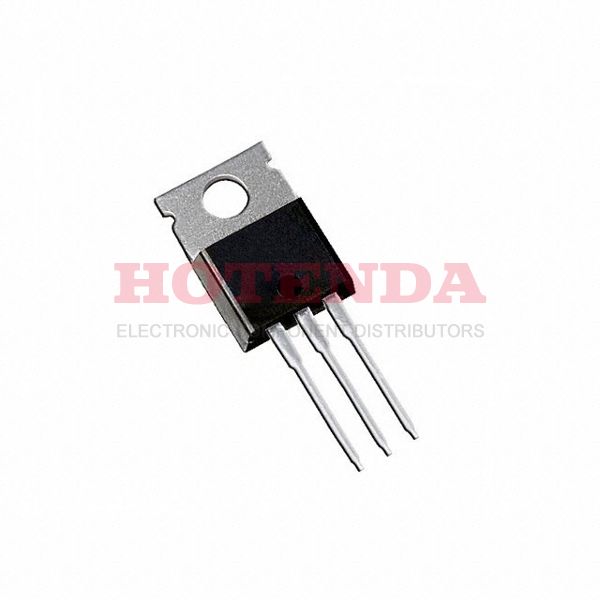

IRFB42N20D datasheet pdf and Transistors - FETs, MOSFETs - Single product details from Infineon Technologies stock available on our website
SOT-23
IRFB42N20D Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mounting Type
Through Hole
Package / Case
TO-220-3
Surface Mount
NO
Transistor Element Material
SILICON
Operating Temperature
-55°C~175°C TJ
Packaging
Tube
Published
2001
Series
HEXFET®
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
3
ECCN Code
EAR99
HTS Code
8541.29.00.95
Technology
MOSFET (Metal Oxide)
Terminal Position
SINGLE
Peak Reflow Temperature (Cel)
NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)
NOT SPECIFIED
JESD-30 Code
R-PSFM-T3
Qualification Status
Not Qualified
Number of Elements
1
Configuration
SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max
2.4W Ta 330W Tc
Operating Mode
ENHANCEMENT MODE
Case Connection
DRAIN
FET Type
N-Channel
Transistor Application
SWITCHING
Rds On (Max) @ Id, Vgs
55m Ω @ 26A, 10V
Vgs(th) (Max) @ Id
5.5V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds
3430pF @ 25V
Current - Continuous Drain (Id) @ 25°C
44A Tc
Gate Charge (Qg) (Max) @ Vgs
140nC @ 10V
Drain to Source Voltage (Vdss)
200V
Drive Voltage (Max Rds On,Min Rds On)
10V
Vgs (Max)
±30V
JEDEC-95 Code
TO-220AB
Drain Current-Max (Abs) (ID)
44A
Drain-source On Resistance-Max
0.055Ohm
Pulsed Drain Current-Max (IDM)
180A
DS Breakdown Voltage-Min
200V
Avalanche Energy Rating (Eas)
510 mJ
RoHS Status
Non-RoHS Compliant
In-Stock:1994 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
150
$4.55513
$683.2695
IRFB42N20D Product Details
IRFB42N20D Description
IRFB42N20D is an N-channel Power MOSFET transistor from the manufacturer Infineon Technologies with a voltage of 200V. The operating temperature of the IRFB42N20D is -55??C~175??C TJ and its maximum power dissipation is 2.4W Ta. IRFB42N20D has 3 pins and it is available in Tube packaging way.
IRFB42N20D Features
Low Gate-to-Drain Charge to Reduce Switching Losses
Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001)
Fully Characterized Avalanche Voltage and Current
IRFB42N20D Applications
High frequency DC-DC converters
Motor Control
Uninterrutible Power Supplies
