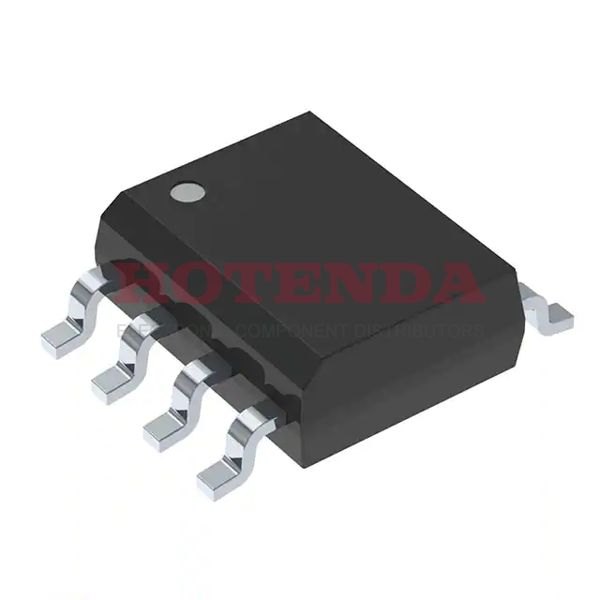

IRF7831PBF datasheet pdf and Transistors - FETs, MOSFETs - Single product details from Infineon Technologies stock available on our website
SOT-23
IRF7831PBF Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
14 Weeks
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154, 3.90mm Width)
Surface Mount
YES
Transistor Element Material
SILICON
Operating Temperature
-55°C~150°C TJ
Packaging
Tube
Published
2005
Series
HEXFET®
Part Status
Discontinued
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
8
Technology
MOSFET (Metal Oxide)
Terminal Position
DUAL
Terminal Form
GULL WING
Peak Reflow Temperature (Cel)
NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)
NOT SPECIFIED
JESD-30 Code
R-PDSO-G8
Number of Elements
1
Configuration
SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max
2.5W Ta
Operating Mode
ENHANCEMENT MODE
FET Type
N-Channel
Transistor Application
SWITCHING
Rds On (Max) @ Id, Vgs
3.6m Ω @ 20A, 10V
Vgs(th) (Max) @ Id
2.35V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds
6240pF @ 15V
Current - Continuous Drain (Id) @ 25°C
21A Ta
Gate Charge (Qg) (Max) @ Vgs
60nC @ 4.5V
Drain to Source Voltage (Vdss)
30V
Drive Voltage (Max Rds On,Min Rds On)
4.5V 10V
Vgs (Max)
±12V
JEDEC-95 Code
MS-012AA
Drain Current-Max (Abs) (ID)
21A
Drain-source On Resistance-Max
0.0036Ohm
Pulsed Drain Current-Max (IDM)
170A
DS Breakdown Voltage-Min
30V
Avalanche Energy Rating (Eas)
100 mJ
RoHS Status
ROHS3 Compliant
In-Stock:4660 items
IRF7831PBF Product Details
IRF7831PBF Description
IRF7831PBF is an N-channel Power MOSFET transistor from the manufacturer Infineon Technologies with a voltage of 30V. The operating temperature of the IRF7831PBF is -55??C~150??C TJ and its maximum power dissipation is 2.5W Ta. IRF7413ZPBF has 8 pins and it is available in Tube packaging way. The Drain to Source Voltage (Vdss) of IRF7831PBF is 30V.
IRF7831PBF Features
Very Low RDS(on) at 4.5V VGS
Ultra-Low Gate Impedance
Fully Characterized Avalanche Voltage and Current
100% Tested for RG
Lead-Free
IRF7831PBF Applications
High Frequency Point-of-Load Synchronous Buck Converter for Applications
Networking & Computing Systems
