IRF7807APBF datasheet pdf and Transistors - FETs, MOSFETs - Single product details from Infineon Technologies stock available on our website
SOT-23
IRF7807APBF Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mount
Surface Mount
Mounting Type
Surface Mount

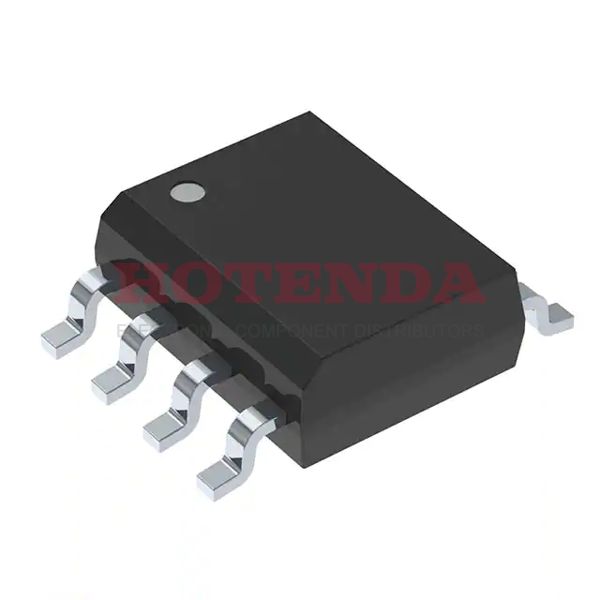

Package / Case
8-SOIC (0.154, 3.90mm Width)
Number of Pins
8
Transistor Element Material
SILICON
Operating Temperature
-55°C~150°C TJ
Packaging
Tube
Published
2004
Series
HEXFET®
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
8
Resistance
25MOhm
Voltage - Rated DC
30V
Technology
MOSFET (Metal Oxide)
Terminal Position
DUAL
Terminal Form
GULL WING
Current Rating
6.6A
Number of Elements
1
Row Spacing
6.3 mm
Power Dissipation-Max
2.5W Ta
Element Configuration
Single
Operating Mode
ENHANCEMENT MODE
Power Dissipation
2.5W
Turn On Delay Time
12 ns
FET Type
N-Channel
Transistor Application
SWITCHING
Rds On (Max) @ Id, Vgs
25m Ω @ 7A, 4.5V
Vgs(th) (Max) @ Id
1V @ 250μA
Current - Continuous Drain (Id) @ 25°C
8.3A Ta
Gate Charge (Qg) (Max) @ Vgs
17nC @ 5V
Rise Time
17ns
Drive Voltage (Max Rds On,Min Rds On)
4.5V
Vgs (Max)
±12V
Fall Time (Typ)
6 ns
Turn-Off Delay Time
25 ns
Continuous Drain Current (ID)
8.3A
Threshold Voltage
1V
Gate to Source Voltage (Vgs)
12V
Drain to Source Breakdown Voltage
30V
Pulsed Drain Current-Max (IDM)
66A
Dual Supply Voltage
30V
Nominal Vgs
1 V
Height
1.4986mm
Length
4.9784mm
Width
3.9878mm
Radiation Hardening
No
REACH SVHC
No SVHC
RoHS Status
RoHS Compliant
Lead Free
Contains Lead, Lead Free
In-Stock:3468 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.277664
$0.277664
10
$0.261947
$2.61947
100
$0.247120
$24.712
500
$0.233132
$116.566
1000
$0.219936
$219.936
IRF7807APBF Product Details
IRF7807APBF Description
The IRF7807APBF is the HEXFET? Chip-Set for DC-DC Converters employing advanced HEXFET Power MOSFET technology to achieve an unprecedented balance of on-resistance and gate charge. The reduced conduction and switching losses make them ideal for high-efficiency DC-DC Converters that power the latest generation of mobile microprocessors.
IRF7807APBF Features
N Channel Application-Specific MOSFETs
Ideal for Mobile DC-DC Converters
Low Conduction Losses
Low Switching Losses
Lead-Free
IRF7807APBF Applications
New energy vehicles, photovoltaic & wind power generation, smart grid
