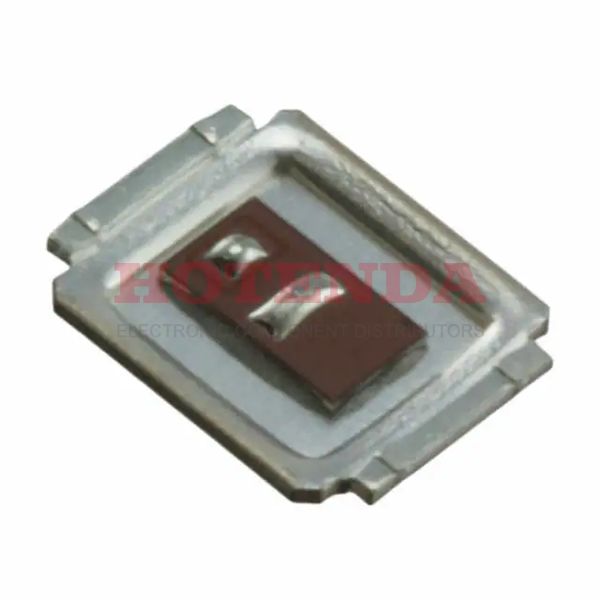

Name: IRF6708S2TR1PBF
Brand: Infineon Technologies
SKU: IRF6708S2TR1PBF
Availability: InStock

new-10%

IRF6708S2TR1PBF

Manufacturer part number:IRF6708S2TR1PBF

Manufacturer:Infineon Technologies

Description:MOSFET N-CH 30V 13A DIRECTFET-LV

Case Package:SOT-23

Datasheet:IRF6708S2TR1PBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	DirectFET™ Isometric S1
Number of Pins	6
Supplier Device Package	DIRECTFET S1
Operating Temperature	-55°C~175°C TJ
Packaging	Tape & Reel (TR)
Published	2011
Series	HEXFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	175°C
Min Operating Temperature	-55°C
Technology	MOSFET (Metal Oxide)
Number of Elements	1
Power Dissipation-Max	2.5W Ta 20W Tc
Element Configuration	Single
Power Dissipation	20W
Turn On Delay Time	9.1 ns
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	8.9mOhm @ 13A, 10V
Vgs(th) (Max) @ Id	2.35V @ 25μA
Input Capacitance (Ciss) (Max) @ Vds	1010pF @ 15V
Current - Continuous Drain (Id) @ 25°C	13A Tc
Gate Charge (Qg) (Max) @ Vgs	10nC @ 4.5V
Rise Time	27ns
Drain to Source Voltage (Vdss)	30V
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Fall Time (Typ)	11 ns
Turn-Off Delay Time	10 ns
Continuous Drain Current (ID)	13A
Threshold Voltage	1.8V
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	30V
Input Capacitance	1.01nF
Drain to Source Resistance	14.3mOhm
Rds On Max	8.9 mΩ
Nominal Vgs	1.8 V
Height	490μm
Length	3.95mm
Width	3.95mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant

About IRF6708S2TR1PBF

The IRF6708S2TR1PBF from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 30V 13A DIRECTFET-LV.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the IRF6708S2TR1PBF, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
