Name: IRF6612TR1
Brand: Infineon Technologies
SKU: IRF6612TR1
Availability: InStock

new-10%

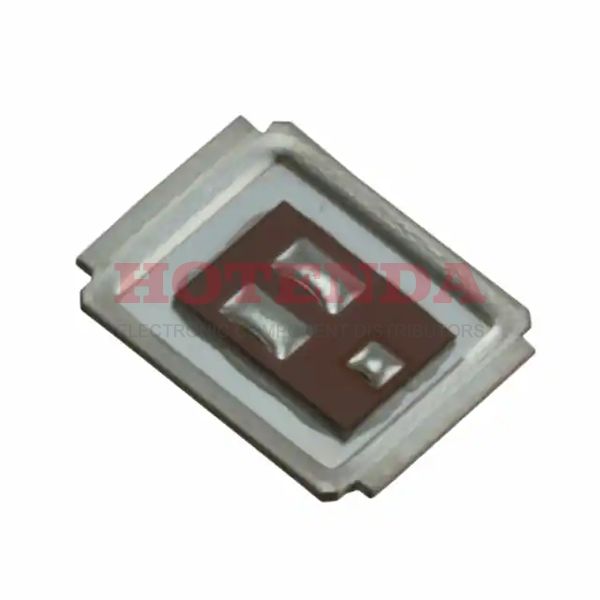

IRF6612TR1

Manufacturer part number:IRF6612TR1

Manufacturer:Infineon Technologies

Description:MOSFET N-CH 30V 24A DIRECTFET

Case Package:SOT-23

Datasheet:IRF6612TR1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	DirectFET™ Isometric MX
Number of Pins	7
Supplier Device Package	DIRECTFET™ MX
Operating Temperature	-40°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2005
Series	HEXFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Termination	SMD/SMT
Max Operating Temperature	150°C
Min Operating Temperature	-40°C
Voltage - Rated DC	30V
Technology	MOSFET (Metal Oxide)
Current Rating	24A
Power Dissipation-Max	2.8W Ta 89W Tc
Power Dissipation	2.8W
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	3.3mOhm @ 24A, 10V
Vgs(th) (Max) @ Id	2.25V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	3970pF @ 15V
Current - Continuous Drain (Id) @ 25°C	24A Ta 136A Tc
Gate Charge (Qg) (Max) @ Vgs	45nC @ 4.5V
Rise Time	52ns
Drain to Source Voltage (Vdss)	30V
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Turn-Off Delay Time	21 ns
Reverse Recovery Time	19 ns
Continuous Drain Current (ID)	24A
Threshold Voltage	2.25V
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	30V
Dual Supply Voltage	30V
Input Capacitance	3.97nF
Drain to Source Resistance	2.5Ohm
Rds On Max	3.3 mΩ
Nominal Vgs	2.25 V
REACH SVHC	No SVHC
RoHS Status	Non-RoHS Compliant
Lead Free	Lead Free

About IRF6612TR1

The IRF6612TR1 from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 30V 24A DIRECTFET.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the IRF6612TR1, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
