Name: IRF6201PBF
Brand: Infineon Technologies
SKU: IRF6201PBF
Availability: InStock

new-10%

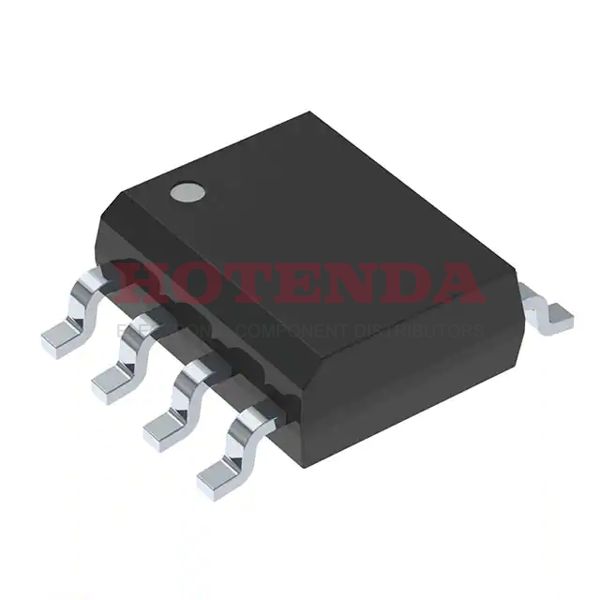

IRF6201PBF

Manufacturer part number:IRF6201PBF

Manufacturer:Infineon Technologies

Description:IRF6201PBF datasheet pdf and Transistors - FETs, MOSFETs - Single product details from Infineon Technologies stock available on our website

Case Package:SOT-23

Datasheet:IRF6201PBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width)
Number of Pins	8
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tube
Published	2004
Series	HEXFET®
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	2.5W Ta
Operating Mode	ENHANCEMENT MODE
Power Dissipation	2.5W
Turn On Delay Time	29 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	2.45m Ω @ 27A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 100μA
Input Capacitance (Ciss) (Max) @ Vds	8555pF @ 16V
Current - Continuous Drain (Id) @ 25°C	27A Ta
Gate Charge (Qg) (Max) @ Vgs	195nC @ 4.5V
Rise Time	100ns
Drive Voltage (Max Rds On,Min Rds On)	2.5V 4.5V
Vgs (Max)	±12V
Fall Time (Typ)	265 ns
Turn-Off Delay Time	320 ns
Continuous Drain Current (ID)	27A
Threshold Voltage	1.1V
Gate to Source Voltage (Vgs)	12V
Drain-source On Resistance-Max	0.00245Ohm
Drain to Source Breakdown Voltage	20V
Recovery Time	120 ns
Height	1.4986mm
Length	4.9784mm
Width	3.9878mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

IRF6201PBF Product Details

IRF6201PBF Description

IRF6201PBF emerges as a member of HEXFET? power MOSFET provided by Infineon Technologies. It is able to provide low RDS (on) (?ü 2.45m? @ Vgs = 4.5 V), thus lower conduction losses can be ensured. It is available in the industry-standard SO-8 package for multi-vendor compatibility. The resulting power MOSFET IRF6201PBF is well suited for system/load switch, battery-operated DC motor inverter MOSFET, OR-ing or hot-swap MOSFET, and more.
