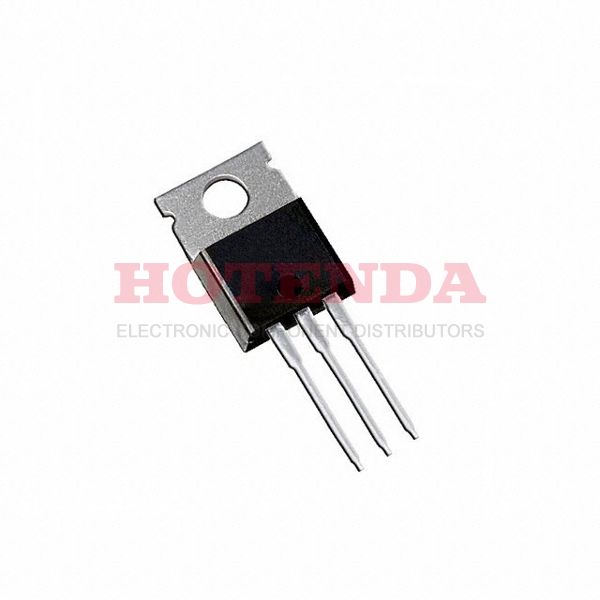

IRF3709 datasheet pdf and Transistors - FETs, MOSFETs - Single product details from Infineon Technologies stock available on our website
SOT-23
IRF3709 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mounting Type
Through Hole
Package / Case
TO-220-3
Surface Mount
NO
Transistor Element Material
SILICON
Operating Temperature
-55°C~150°C TJ
Packaging
Tube
Published
2001
Series
HEXFET®
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
3
ECCN Code
EAR99
Technology
MOSFET (Metal Oxide)
Terminal Position
SINGLE
Peak Reflow Temperature (Cel)
NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)
NOT SPECIFIED
JESD-30 Code
R-PSFM-T3
Qualification Status
Not Qualified
Number of Elements
1
Configuration
SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max
3.1W Ta 120W Tc
Operating Mode
ENHANCEMENT MODE
Case Connection
DRAIN
FET Type
N-Channel
Transistor Application
SWITCHING
Rds On (Max) @ Id, Vgs
9m Ω @ 15A, 10V
Vgs(th) (Max) @ Id
3V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds
2672pF @ 16V
Current - Continuous Drain (Id) @ 25°C
90A Tc
Gate Charge (Qg) (Max) @ Vgs
41nC @ 5V
Drain to Source Voltage (Vdss)
30V
Drive Voltage (Max Rds On,Min Rds On)
4.5V 10V
Vgs (Max)
±20V
JEDEC-95 Code
TO-220AB
Drain Current-Max (Abs) (ID)
90A
Drain-source On Resistance-Max
0.009Ohm
Pulsed Drain Current-Max (IDM)
360A
DS Breakdown Voltage-Min
30V
Avalanche Energy Rating (Eas)
382 mJ
RoHS Status
Non-RoHS Compliant
In-Stock:4604 items
IRF3709 Product Details
IRF3709 Description
IRF3709 is an N-channel Power MOSFET transistor from the manufacturer Infineon Technologies with a voltage of 30V. The operating temperature of the IRF3709 is -55°C~150°C TJ and its maximum power dissipation is 120W Tc. IRF3709 has 3 pins and it is available in Tube packaging way.
IRF3709 Features
Ultra-Low Gate Impedance
Very Low RDS(on) at 4.5V VGS
Fully Characterized Avalanche Voltage and Current
IRF3709 Applications
High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use
High Frequency Buck Converters for Server Processor Power Synchronous FET
Optimized for Synchronous Buck Converters Including Capacitive Induced Turn-on Immunity
