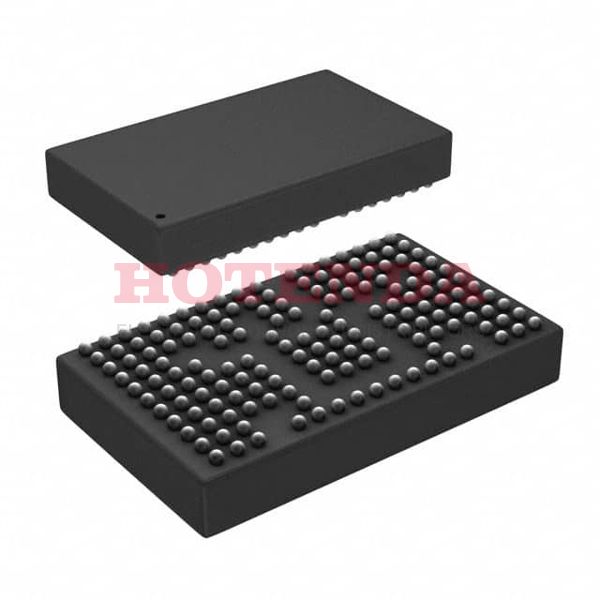

IP1201TR Overview
Using the Tape & Reel (TR) package, this voltage regulator optimizes the performance of the voltage regulator 12v. There is a 159-BBGA Power Module package available for this voltage regulator, as DC DC switching regulator is space-saving. 1 or 2 outputs have been configured in the voltage regulator 12v. This DC DC switching regulator generates Adjustable output on its output pins. This voltage regulator 12v fits the Surface Mount mounting. As long as its operating temperature is -40°C~125°C TJ, dc to dc voltage regulator should perform well. Voltage regulator's switching frequency reaches 170kHz~460kHz. A dc to dc voltage regulator's minimum input voltage of 3.14V is required for this voltage regulator to operate. According to the table below, DC DC switching regulator's output voltage (Min/Fixed) is equal to 0.8V. DC DC switching regulator's 30A 15A output current allows for maximum design flexibility. Voltage regulators' input voltage is limited to 5.5V. In this case, the DC/DC regulator belongs to the family IP1201. By using the 3.3V's maximal output voltage, adjusting voltage regulator can operate easily. Known as a switching DC-DC regulator, this voltage regulator belongs to the iPOWIR? family.
IP1201TR Features
1 or 2 outputs
IP1201TR Applications
There are a lot of Infineon Technologies IP1201TR Voltage Regulators applications.
- Constant current circuits
- Automatic testing equipment
- Printing equipment
- Sensitive electronic devices
- Driver circuits
- Laboratories
- Precision electronic equipment
- Automation technology
- Wide-range voltage regulation circuits
- Product testing
