Name: BSS159N E6906
Brand: Infineon Technologies
SKU: BSS159N E6906
Availability: InStock

new-10%

BSS159N E6906

Manufacturer part number:BSS159N E6906

Manufacturer:Infineon Technologies

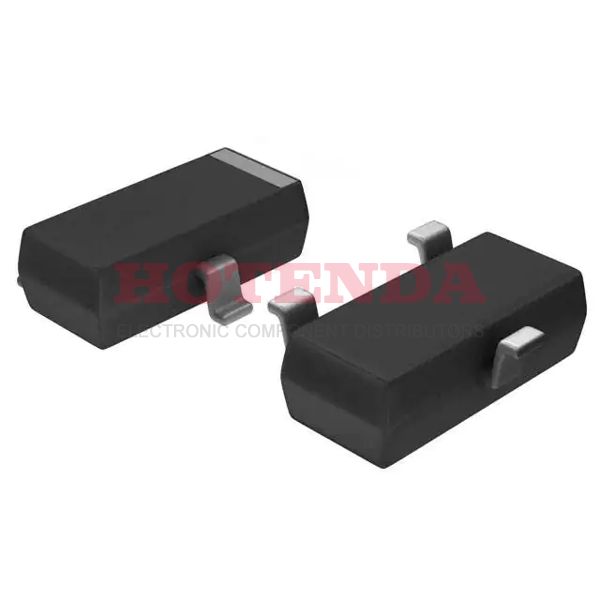

Description:MOSFET N-CH 60V 230MA SOT-23

Case Package:SOT-23

Datasheet:BSS159N E6906 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Surface Mount	YES
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2006
Series	SIPMOS®
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	MATTE TIN
HTS Code	8541.21.00.95
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	compliant
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	3
JESD-30 Code	R-PDSO-G3
Qualification Status	Not Qualified
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	360mW Ta
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	3.5 Ω @ 160mA, 10V
Vgs(th) (Max) @ Id	2.4V @ 26μA
Input Capacitance (Ciss) (Max) @ Vds	44pF @ 25V
Current - Continuous Drain (Id) @ 25°C	230mA Ta
Gate Charge (Qg) (Max) @ Vgs	2.9nC @ 5V
Drain to Source Voltage (Vdss)	60V
Drive Voltage (Max Rds On,Min Rds On)	0V 10V
Vgs (Max)	±20V
Drain Current-Max (Abs) (ID)	0.23A
DS Breakdown Voltage-Min	60V
FET Feature	Depletion Mode
Feedback Cap-Max (Crss)	5.9 pF
RoHS Status	RoHS Compliant

About BSS159N E6906

The BSS159N E6906 from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 60V 230MA SOT-23.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the BSS159N E6906, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
