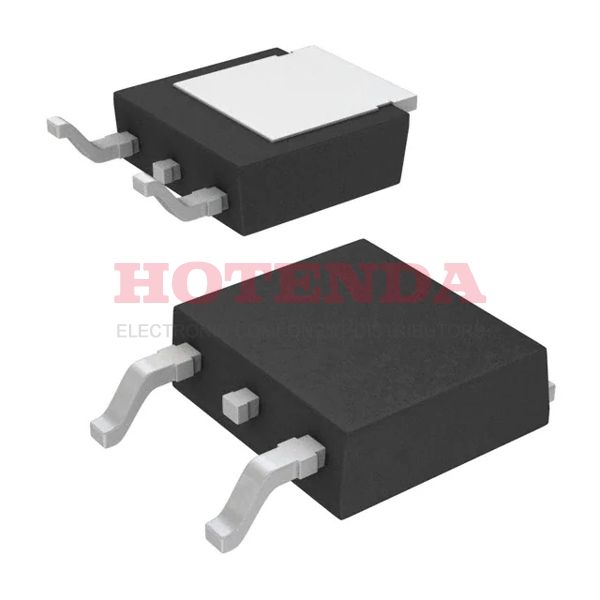

Name: AUIRFR2607ZTRL
Brand: Infineon Technologies
SKU: AUIRFR2607ZTRL
Availability: InStock

new-10%

AUIRFR2607ZTRL

Manufacturer part number:AUIRFR2607ZTRL

Manufacturer:Infineon Technologies

Description:MOSFET N-CH 75V 42A DPAK

Case Package:SOT-23

Datasheet:AUIRFR2607ZTRL Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Number of Pins	3
Transistor Element Material	SILICON
Operating Temperature	-55°C~175°C TJ
Packaging	Tape & Reel (TR)
Published	2013
Series	HEXFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Additional Feature	ULTRA LOW RESISTANCE
Technology	MOSFET (Metal Oxide)
Terminal Position	SINGLE
Terminal Form	GULL WING
Reference Standard	AEC-Q101
JESD-30 Code	R-PSSO-G2
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	110W Tc
Operating Mode	ENHANCEMENT MODE
Power Dissipation	110W
Case Connection	DRAIN
Turn On Delay Time	14 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	22m Ω @ 30A, 10V
Vgs(th) (Max) @ Id	4V @ 50μA
Input Capacitance (Ciss) (Max) @ Vds	1440pF @ 25V
Current - Continuous Drain (Id) @ 25°C	42A Tc
Gate Charge (Qg) (Max) @ Vgs	51nC @ 10V
Rise Time	59ns
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
Fall Time (Typ)	28 ns
Turn-Off Delay Time	39 ns
Continuous Drain Current (ID)	42A
JEDEC-95 Code	TO-252AA
Gate to Source Voltage (Vgs)	20V
Drain-source On Resistance-Max	0.022Ohm
Drain to Source Breakdown Voltage	75V
Pulsed Drain Current-Max (IDM)	180A
Avalanche Energy Rating (Eas)	96 mJ
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free

About AUIRFR2607ZTRL

The AUIRFR2607ZTRL from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 75V 42A DPAK.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the AUIRFR2607ZTRL, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
