805MABA04KHL

  • 805MABA04KHL - MAB 8μF Film Capacitor ±10% Radial PC Pins 370V-DC 160V-AC Polypropylene (PP), Metallized Through Hole
  • 805MABA04KHL - MAB 8μF Film Capacitor ±10% Radial PC Pins 370V-DC 160V-AC Polypropylene (PP), Metallized Through Hole

805MABA04KHL

805MABA04KHL

Illinois Capacitor

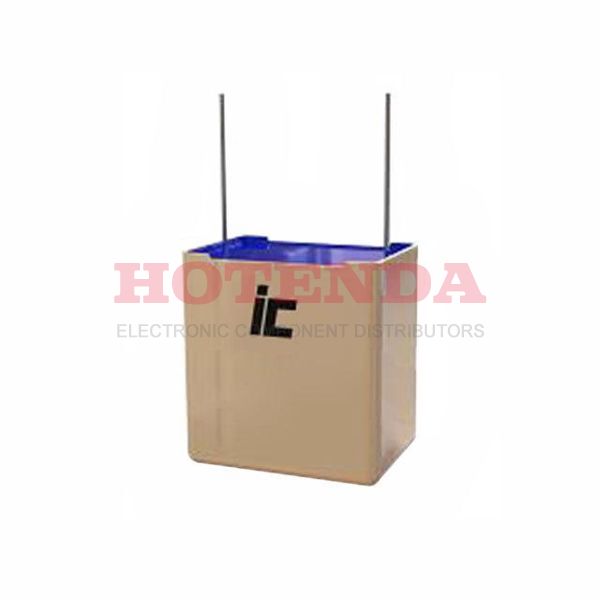

MAB 8μF Film Capacitor ±10% Radial PC Pins 370V-DC 160V-AC Polypropylene (PP), Metallized Through Hole

SOT-23

805MABA04KHL Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 22 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~100°C
PackagingBulk
Published 2016
Series MAB
Size / Dimension 1.260Lx0.709W 32.00mmx18.00mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications Motor Run
Additional FeatureRATED AC VOLTAGE(V): 160
HTS Code8532.25.00.70
Capacitance 8μF
Voltage - Rated DC 370V
Voltage - Rated AC 160V
Lead Pitch 27.5082mm
Capacitor Type FILM CAPACITOR
Lead Spacing1.083 27.50mm
Rated (DC) Voltage (URdc) 350V
Height Seated (Max) 1.299 33.00mm
RoHS StatusROHS3 Compliant
In-Stock:3923 items

Pricing & Ordering

QuantityUnit PriceExt. Price
120$4.15142$498.1704

805MABA04KHL Product Details

805MABA04KHL Overview


An internal (DC) voltage of 350V is required for systems to function.Lead spacing is 1.083 27.50mm for this electrical device.Temperatures of -40°C~100°C allow the device to operate.

805MABA04KHL Features


a rated (DC) voltage (URdc) of 350V

805MABA04KHL Applications


There are a lot of Illinois Capacitor 805MABA04KHL applications of film capacitors.

  • Blocking
  • Electronic ballasts
  • Mobile communications
  • Matching networks
  • Bypassing
  • Global positioning systems
  • Filtering
  • IGBT
  • Lighting
  • TV and monitor sets
