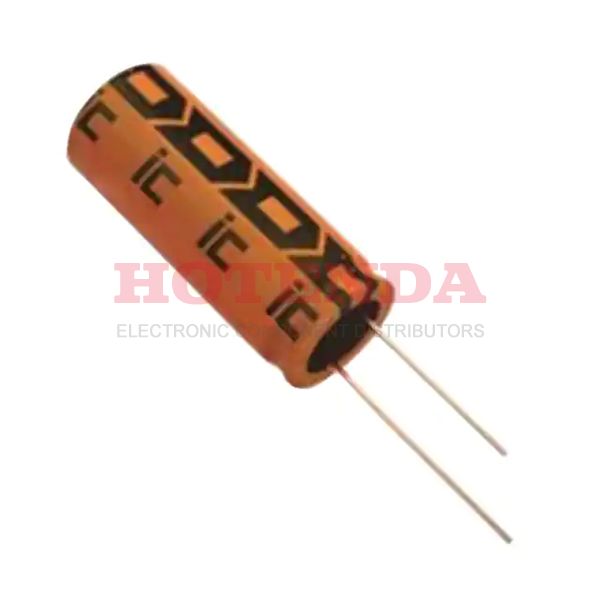

477CKS016M Overview
In terms of ripple current, it is 825mA @ 100kHz at full charge.The ESR (Equivalent Series Resistance) of 564mOhm @ 120Hz needs to be provided to fully play its function.The ripple current at the lowest charge is 500mA @ 120Hz.Sitting height (Max) should not exceed 0.512 13.00mm.With 0.16 % dissipation factor, it operates normally.The capacitor operates from 16V DC voltage.When operating at -40°C~85°C, high efficiency can be achieved.
477CKS016M Features
the ripple current is 825mA @ 100kHz.
the ripple current is 500mA @ 120Hz.
a dissipation factor of 0.16 %
voltage - Rated DC of 16V
an operating temperature of -40°C~85°C
477CKS016M Applications
There are a lot of Illinois Capacitor 477CKS016M applications of aluminum electrolytic capacitors.
- Smoothing and filtering applications
- Standard and switched mode power supplies
- Energy storage in pulse systems
- Industrial systems
- Uninterruptible power supplies
- Power supplies
- Frequency converters
- Telecommunication
- Computer motherboards
- Computer
