223MPR630K

  • 223MPR630K - MPR 0.022μF Film Capacitor ±10% Radial PC Pins 630V-DC 250V-AC Polypropylene (PP), Metallized Through Hole
  • 223MPR630K - MPR 0.022μF Film Capacitor ±10% Radial PC Pins 630V-DC 250V-AC Polypropylene (PP), Metallized Through Hole

223MPR630K

223MPR630K

Illinois Capacitor

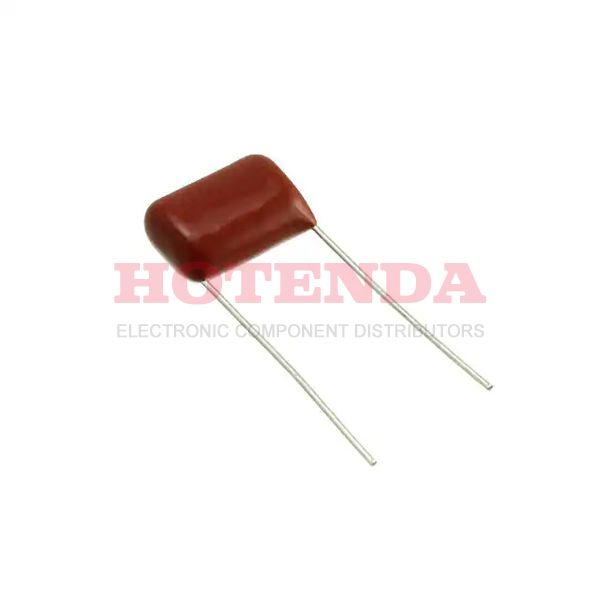

MPR 0.022μF Film Capacitor ±10% Radial PC Pins 630V-DC 250V-AC Polypropylene (PP), Metallized Through Hole

SOT-23

223MPR630K Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 22 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Published 2014
Series MPR
Size / Dimension 0.512Lx0.335W 13.00mmx8.50mm
Tolerance ±10%
JESD-609 Code e3
Feature Low ESR
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications DC Link, DC Filtering
Additional FeatureRATED AC VOLTAGE (V): 250
HTS Code8532.25.00.70
Capacitance 0.022μF
Voltage - Rated DC 630V
Voltage - Rated AC 250V
Lead Pitch 10.0076mm
Capacitor Type FILM CAPACITOR
Lead Spacing0.394 10.00mm
Custom Capabilities Tape & Reel/Ammo Pack, Cut/Formed Leads
Height Seated (Max) 0.492 12.50mm
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:6147 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.206581$1.206581
10$1.138284$11.38284
100$1.073853$107.3853
500$1.013069$506.5345
1000$0.955726$955.726

223MPR630K Product Details

223MPR630K Overview


The lead spacing of this electrical device is 0.394 10.00mm.Temperatures as low as -55°C~105°C are suitable for the device.

223MPR630K Features



223MPR630K Applications


There are a lot of Illinois Capacitor 223MPR630K applications of film capacitors.

  • Industrial and automotive inverters
  • Coupling, decoupling
  • TV and monitor sets
  • Satellite TV
  • Filtering
  • Electronic ballasts
  • Snubbering
  • Matching networks
  • Test and measuring equipment
  • VCO's
