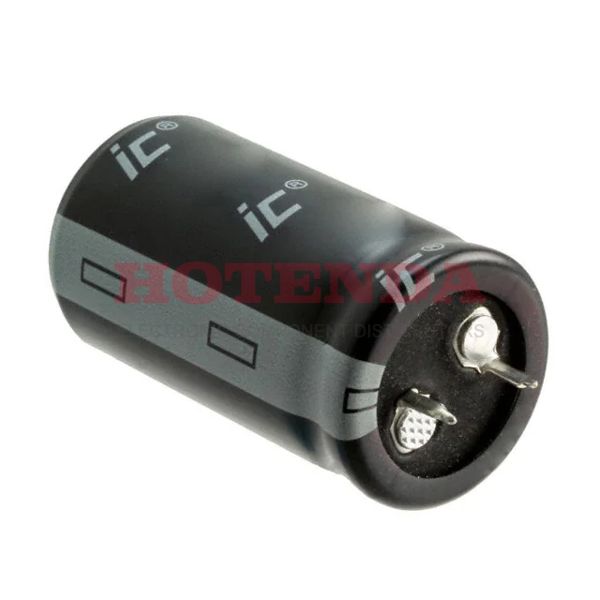

157LBA400M2CD Overview
Full charge results in a ripple current of 1.3083A @ 10kHz.It is necessary to provide the ESR (Equivalent Series Resistance) of 1.65786Ohm @ 120Hz so that it can fully perform its functions.The ripple current is 890mA @ 120Hz at the lowest charge.Keeping the maximum height of the seated person (Max) below 1.260 32.00mm is recommended.The capacitor operates from 400V DC voltage.The operating temperature should be maintained at -25°C~85°C for high efficiency.
157LBA400M2CD Features
the ripple current is 1.3083A @ 10kHz.
the ripple current is 890mA @ 120Hz.
voltage - Rated DC of 400V
an operating temperature of -25°C~85°C
157LBA400M2CD Applications
There are a lot of Illinois Capacitor 157LBA400M2CD applications of aluminum electrolytic capacitors.
- Frequency converters
- Industrial systems
- Uninterruptible power supplies
- Power supplies
- Telecommunication
- Smoothing and filtering applications
- Energy storage in pulse systems
- Standard and switched mode power supplies
- Computer motherboards
- Computer
