105PHC600K

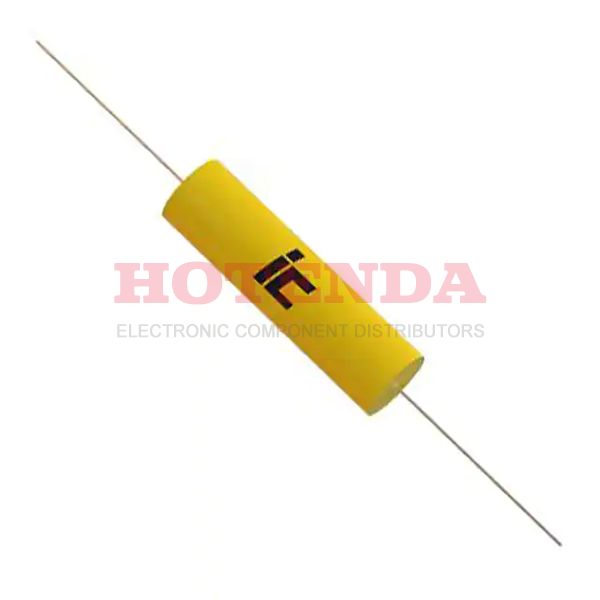

  • 105PHC600K - PHC 1μF Film Capacitor ±10% Axial PC Pins 600V-DC 330V-AC Polypropylene (PP), Metallized PCB, Through Hole
  • 105PHC600K - PHC 1μF Film Capacitor ±10% Axial PC Pins 600V-DC 330V-AC Polypropylene (PP), Metallized PCB, Through Hole

105PHC600K

105PHC600K

Illinois Capacitor

PHC 1μF Film Capacitor ±10% Axial PC Pins 600V-DC 330V-AC Polypropylene (PP), Metallized PCB, Through Hole

SOT-23

105PHC600K Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 17 Weeks
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Axial
Terminal Shape WIRE
Number of Pins 2
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~85°C
PackagingBulk
Series PHC
Size / Dimension 0.689Diax1.339L 17.50mmx34.00mm
Tolerance ±10%
JESD-609 Code e3
Feature Low ESR, Low ESL
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications DC Link, DC Filtering; High Frequency, Switching
Additional FeatureRATED AC VOLTAGE (V): 330
Capacitance 1μF
Voltage - Rated DC 600V
Voltage - Rated AC 330V
Capacitor Type FILM CAPACITOR
Lead Length 35mm
Dielectric PP
ESR (Equivalent Series Resistance) 6.1mOhm
Life (Hours) 100000 hours
Diameter 15.5mm
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
In-Stock:1658 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$3.071000$3.071
10$2.897170$28.9717
100$2.733179$273.3179
500$2.578471$1289.2355
1000$2.432520$2432.52

105PHC600K Product Details

105PHC600K Overview


As a result, the device has 6.1mOhm equivalent series resistance (ESR).Devices with a -40°C~85°C temperature capability can be operated.

105PHC600K Features


6.1mOhm equivalent series resistance (ESR)

105PHC600K Applications


There are a lot of Illinois Capacitor 105PHC600K applications of film capacitors.

  • Global positioning systems
  • Bypassing
  • Mobile communications
  • Audio/video equipment
  • Satellite TV
  • Industrial and automotive inverters
  • RFI for automotive
  • Test and measuring equipment
  • Lighting
  • Blocking
