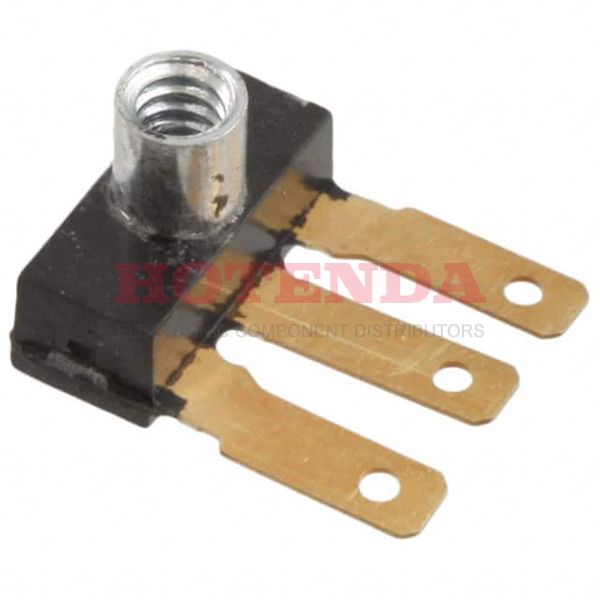

55SS16 Overview
Magnetic position sensor modules are packaged in units of Threaded Boss, Quick Connect Terminals. Magnetic position sensors modules can be set to operate at a temperature of -40°C. To ensure that this sensor module performs properly, the operating temperature should not exceed 100°C. Modules with sensors have 3 pins. Magnet position sensors modules should operate with 5V as their supply voltage. The current drawn by the magnetic position sensors modules could be 4mA. To ensure that the sensor modules perform optimally, they should carry 20mA of current. When a sensor module is operating, the maximum voltage value should be 9V. The minimum voltage value supplied by the sensor modules should, however, be 4.5V.
55SS16 Features
Package / Case: Threaded Boss, Quick Connect Terminals
5SS Series
Operating Temperature: -40°C~100°C TA
Supply Voltage: 4.5V~9V
Frequency: 100kHz
3 Pins
Operating Supply Voltage: 5V
Operating Supply Current: 4mA
55SS16 Applications
There are a lot of Honeywell Sensing and Productivity Solutions 55SS16 Magnetic Position Sensors Modules applications.
- Fan speed measurement
- Dyno testing
- Angle sensing
- Tachometer
- Speed and RPM (revolutions per minute) sensing
- Rotary applications
- Position tracking
- Motor assemblies
- Industrial controls
- Monitor protections of the safety gates
