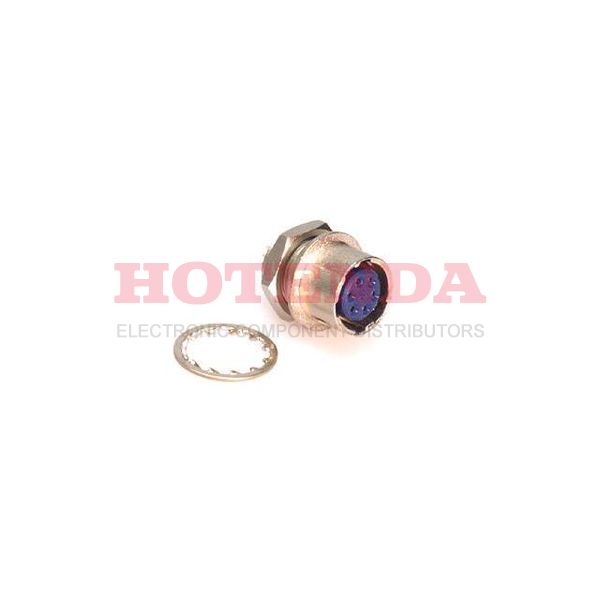

Name: HR10-7R-6S(73)
Brand: Hirose Electric Co Ltd
SKU: HR10-7R-6S(73)
Price: 16.34000 USD
Availability: InStock

new

HR10-7R-6S(73)

Manufacturer part number:HR10-7R-6S(73)

Manufacturer:Hirose Electric Co Ltd

Description:Receptacle, Female SocketsZinc AlloyPanel Mount6 PositionsSolder CupGoldNickelBulkKeyedPush-Pull

Case Package:SOT-23

Datasheet:HR10-7R-6S(73) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Beryllium Copper
Mount	Bulkhead, Panel, Rear Side Nut
Mounting Type	Panel Mount
Mounting Feature	Bulkhead - Rear Side Nut
Insulation Material	PBT
Shell Material	Zinc Alloy
Material	Zinc
Housing Material	Metal
Insert Material	Polyamide (PA), Nylon
Body Material	Brass
Operating Temperature	-25°C~85°C
Packaging	Bulk
Published	1998
Series	HR10
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder Cup
ECCN Code	EAR99
Connector Type	Receptacle, Female Sockets
Number of Positions	6
Color	Silver
Applications	Industrial, Medical
Gender	Receptacle
Additional Feature	POLARIZED
Fastening Type	Push-Pull
Subcategory	DIN Connectors
Voltage - Rated DC	300V
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	7mm
Total Number of Contacts	6
Orientation	Keyed
Shielding	Unshielded
Current Rating	2A
Shell Finish	Nickel
Shell Size - Insert	7
Voltage - Rated AC	300V
Reliability	COMMERCIAL
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Gender	Female
Empty Shell	NO
Rated Current (Signal)	2A
Backshell Type	SOLID
Contact Style	RND PIN-SKT
Contact Resistance	10mOhm
Insulation Resistance	1000000000Ohm
Polarization Key	POLARIZED HOUSING
Coupling Type	SNAP
Number of Ports	1
Durability	1000 Cycles
Contact Finish Thickness - Mating	8.00μin 0.203μm
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Lead Free	Lead Free

HR10-7R-6S(73) Product Details

HR10-7R-6S(73) Overview

Currently, it is packaged in Receptacle, Female Sockets.A Panel Mount mounting type is specified for the device.Bulk cases are used to package the product.This product is part of the HR10 Series.Further, there are features such as POLARIZED, to name only a few.This part is mounted by Bulkhead, Panel, Rear Side Nut. -25°C~85°C Operating Temperature is the default.
