Name: HIF6A-34PA-1.27DSA(71)
Brand: Hirose Electric Co Ltd
SKU: HIF6A-34PA-1.27DSA(71)
Price: 4.65000 USD
Availability: InStock

new-10%

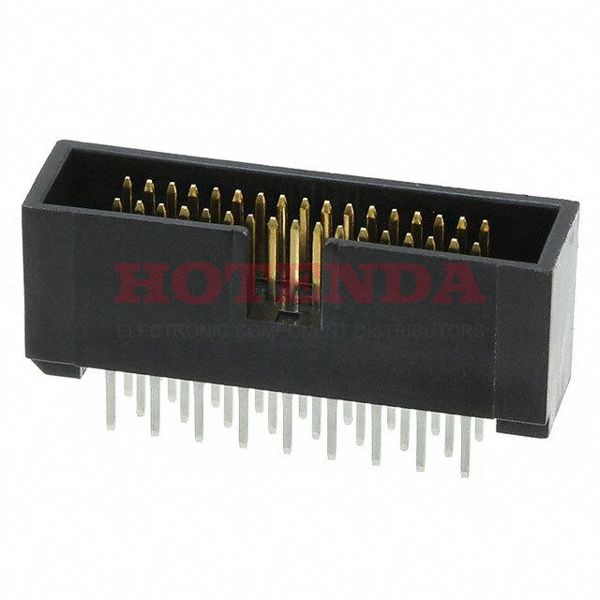

HIF6A-34PA-1.27DSA(71)

Manufacturer part number:HIF6A-34PA-1.27DSA(71)

Manufacturer:Hirose Electric Co Ltd

Description:HIF6A-34PA-1.27DSA(71) datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:HIF6A-34PA-1.27DSA(71) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Brass
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-55°C~85°C
Packaging	Tray
Series	HIF6
Feature	Keying Slot
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	34
Number of Rows	2
Voltage - Rated	300V
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Insulation Height	0.453 11.50mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Reach Compliance Code	unknown
Current Rating	500mA
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.110 2.79mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
Contact Length - Mating	0.205 5.21mm
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	8.00μin 0.203μm
Contact Finish Thickness - Post	78.7μin 2.00μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Lead Free	Lead Free

HIF6A-34PA-1.27DSA(71) Product Details

HIF6A-34PA-1.27DSA(71) Overview

You'll get Header packages.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.It is part of the HIF6 Series of products.In many ways, its Keying Slot feature makes it more powerful.This device operates at a temperature of -55°C~85°C.
