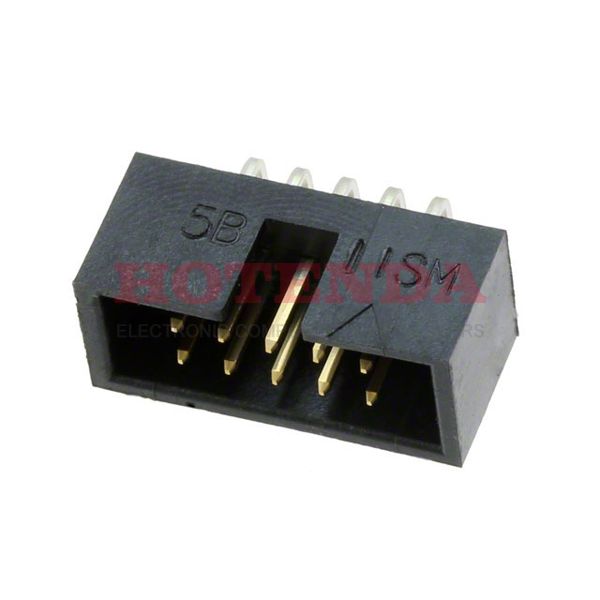

Name: HIF3FC-10PA-2.54DS(71)
Brand: Hirose Electric Co Ltd
SKU: HIF3FC-10PA-2.54DS(71)
Price: 2.30000 USD
Availability: InStock

new-10%

HIF3FC-10PA-2.54DS(71)

Manufacturer part number:HIF3FC-10PA-2.54DS(71)

Manufacturer:Hirose Electric Co Ltd

Description:HIF3FC-10PA-2.54DS(71) datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:HIF3FC-10PA-2.54DS(71) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Brass
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polybutylene Terephthalate (PBT)
Housing Material	Polybutylene
Mounting Option 1	LOCKING
Operating Temperature	-55°C~85°C
Packaging	Tray
Series	HIF3FC
JESD-609 Code	e4
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	10
Number of Rows	2
Additional Feature	LOW PROFILE
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Right Angle
Insulation Height	0.335 8.51mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Reach Compliance Code	unknown
Current Rating	1A
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Voltage - Rated AC	200V
Reliability	COMMERCIAL
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.118 3.00mm
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	2
Contact Finish - Post	Tin
Contact Length - Mating	0.236 6.00mm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.335 inch
UL Flammability Code	94V-0
Body Depth	0.501 inch
Rated Current (Signal)	1A
Contact Resistance	15mOhm
Mating Contact Pitch	0.1 inch
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	650VAC V
Durability	500 Cycles
Height	8.8mm
Length	20.2mm
Contact Finish Thickness - Mating	8.00μin 0.203μm
Contact Finish Thickness - Post	78.7μin 2.00μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

HIF3FC-10PA-2.54DS(71) Product Details

HIF3FC-10PA-2.54DS(71) Overview

This product is packaged in a Header cartonThrough Hole, Right Angle is the mounting type for the device.An orange Tray case is used to package the product.This product is in the HIF3FC Series.As well as LOW PROFILE, to name a few.Running in -55°C~85°C Operating Temperature.
