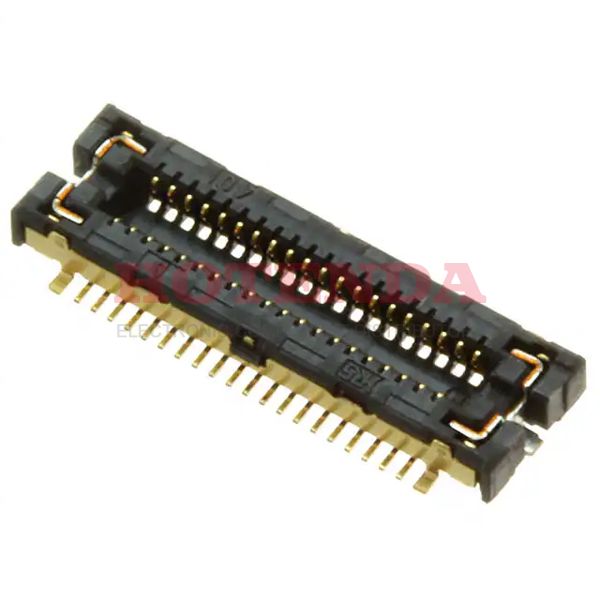

Name: FX12B-40S-0.4SV
Brand: Hirose Electric Co Ltd
SKU: FX12B-40S-0.4SV
Price: 1.75000 USD
Availability: InStock

new-10%

FX12B-40S-0.4SV

Manufacturer part number:FX12B-40S-0.4SV

Manufacturer:Hirose Electric Co Ltd

Description:FX12B-40S-0.4SV datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FX12B-40S-0.4SV Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Gold, Nickel
Mounting Type	Surface Mount
Insulation Material	POLYAMIDE
Mounting Option 1	GUIDE SLOT
Board Mounting Option	SOLDER HOLDING POSTS
Mounting Option 2	LOCKING
Packaging	Tape & Reel (TR)
Series	FX12
JESD-609 Code	e3
Feature	Solder Retention
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	40
Max Operating Temperature	85°C
Min Operating Temperature	-55°C
Number of Rows	2
Gender	Receptacle
Voltage - Rated	30V
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.016 0.40mm
Total Number of Contacts	40
Reach Compliance Code	unknown
Current Rating	300mA
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
UL Flammability Code	94V-0
Rated Current (Signal)	0.3A
Contact Resistance	100mOhm
Insulation Resistance	50000000Ohm
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	100VAC V
Durability	30 Cycles
Contact Pattern	RECTANGULAR
Insulator Color	BLACK
Height	1.5mm
Contact Finish Thickness	3.94μin 0.10μm
Height Above Board	0.047 1.20mm
RoHS Status	RoHS Compliant

FX12B-40S-0.4SV Product Details

FX12B-40S-0.4SV Overview

The product is packaged in Receptacle, Outer Shroud Contacts.We pack the product in a Tape & Reel (TR) case.It's mounted Surface Mount.It's part of the FX12 Series.It is possible to maintain Solder Retention when operating.It is best used at temperatures below 85°C.-55°C is the minimum temperature this device can operate at.
