Name: FH26W-15S-0.3SHW(98)
Brand: Hirose Electric Co Ltd
SKU: FH26W-15S-0.3SHW(98)
Availability: InStock

new-10%

FH26W-15S-0.3SHW(98)

Manufacturer part number:FH26W-15S-0.3SHW(98)

Manufacturer:Hirose Electric Co Ltd

Description:FH26W-15S-0.3SHW(98) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH26W-15S-0.3SHW(98) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Series	FH26
JESD-609 Code	e4
Feature	Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	15
Number of Rows	2
Voltage - Rated	30V
Additional Feature	STANDARD: IEC 61249-2-21, LOW PROFILE
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	YES
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.2A
Pitch	0.012 0.30mm
Total Number of Contacts	15
Reach Compliance Code	unknown
Current Rating	200mA
Contact Finish	Gold
Contact Gender	FEMALE
Housing Color	Black
Insulation Resistance	50MOhm
Mating Cycles	10
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Actuator Color	Brown
Height Above Board	0.039 1.00mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 HB
RoHS Status	RoHS Compliant
Flammability Rating	UL94 HB

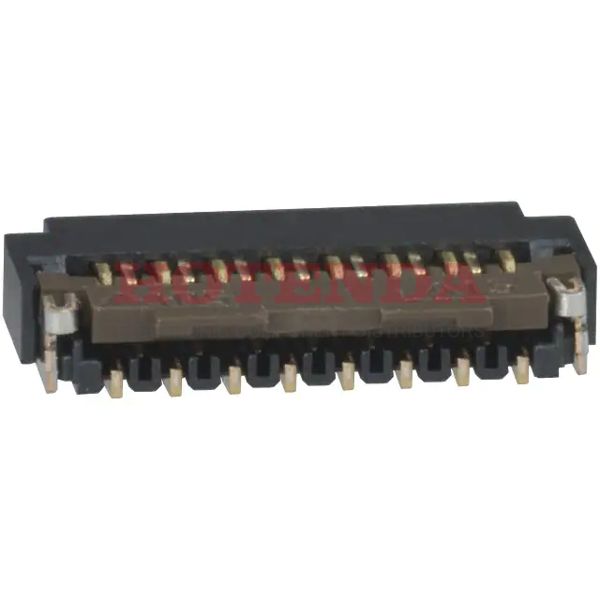

FH26W-15S-0.3SHW(98) Product Details

FH26W-15S-0.3SHW(98) Overview

Mounting type Surface Mount, Right Angle is selected for the device.In order to package the product, a Tape & Reel (TR) case is used.As a product of the FH26 Series, it can be found in this category.Among other features are STANDARD: IEC 61249-2-21, LOW PROFILE, to name only a few.In many ways, its Zero Insertion Force (ZIF) feature makes it more powerful.Surface Mount is the mounting point for the part.In this case, the device operates at -55°C~85°C Operating Temperature.
