Name: DF1E-6S-2.5C
Brand: Hirose Electric Co Ltd
SKU: DF1E-6S-2.5C
Price: 0.37000 USD
Availability: InStock

new-10%

DF1E-6S-2.5C

Manufacturer part number:DF1E-6S-2.5C

Manufacturer:Hirose Electric Co Ltd

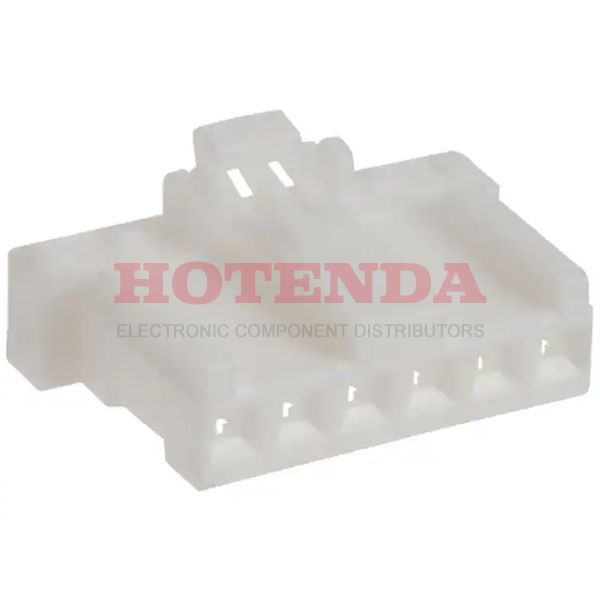

Description:1 Rows Receptacle Bulk White 6 Positions Free Hanging (In-Line) Female Socket Crimp DF1E Polyamide

Case Package:SOT-23

Datasheet:DF1E-6S-2.5C Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide
Packaging	Bulk
Series	DF1E
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Receptacle
Number of Positions	6
Max Operating Temperature	85°C
Min Operating Temperature	-35°C
Color	White
Number of Rows	1
Voltage - Rated	250V
Fastening Type	Latch Lock
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.098 2.50mm
Total Number of Contacts	6
Orientation	Straight
Depth	11.8mm
Current Rating	3A
Reference Standard	UL
Voltage - Rated AC	250V
Reliability	COMMERCIAL
Contact Gender	Female
UL Flammability Code	94V-0
Rated Current (Signal)	3A
Contact Resistance	30mOhm
Note	Contacts Not Included
Max Voltage Rating (AC)	250V
Max Current Rating	3A
Polarization Key	POLARIZED HOUSING
Durability	30 Cycles
Insertion Force-Max	4.3924 N
Contact Termination	Crimp
Wire Size (Min)	22 AWG
Wire Size (Max)	20 AWG
Height	7.55mm
Length	18mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free

DF1E-6S-2.5C Product Details

DF1E-6S-2.5C Overview

A Receptacle package is included with it.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the DF1E Series of products.Cable, Free Hanging mounts the part.
