Name: DF1B-2S-2.5R
Brand: Hirose Electric Co Ltd
SKU: DF1B-2S-2.5R
Price: 0.15000 USD
Availability: InStock

new-10%

DF1B-2S-2.5R

Manufacturer part number:DF1B-2S-2.5R

Manufacturer:Hirose Electric Co Ltd

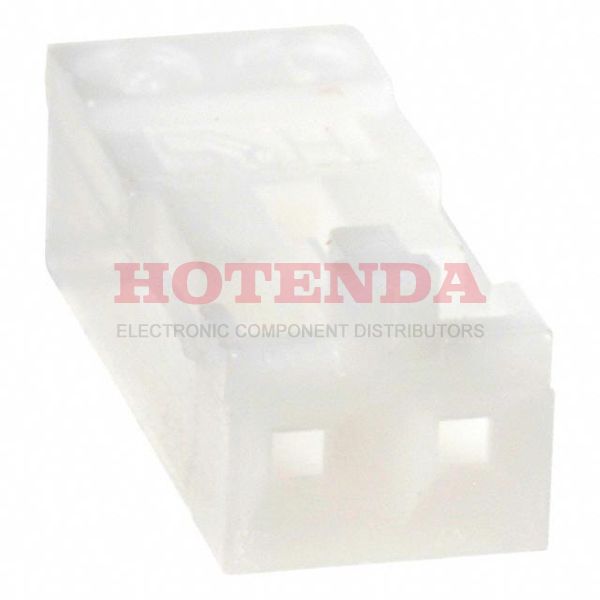

Description:1 Rows Receptacle Bulk White 2 Positions Free Hanging (In-Line) Female Socket Crimp, IDC DF1B Polyamide

Case Package:SOT-23

Datasheet:DF1B-2S-2.5R Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	PHOSPHOR COPPER
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide
Packaging	Bulk
Series	DF1B
JESD-609 Code	e3/e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	IDC
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	2
Max Operating Temperature	85°C
Min Operating Temperature	-35°C
Color	White
Number of Rows	1
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	TIN/GOLD
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.098 2.50mm
Total Number of Contacts	2
Orientation	Straight
Depth	11.5mm
Reference Standard	UL
Reliability	COMMERCIAL
Mating Information	MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code	94V-0
Rated Current (Signal)	3A
Contact Resistance	30mOhm
Note	Contacts Not Included
Max Voltage Rating (AC)	250V
Max Current Rating	3A
Dielectric Withstanding Voltage	650VAC V
Contact Termination	Crimp, IDC
Contact Design	PREASSEM CONN
Length	5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free

DF1B-2S-2.5R Product Details

DF1B-2S-2.5R Overview

Packaging for this item is Receptacle.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the DF1B Series.Free Hanging is used to mount the part.
