Name: A2-16PA-2.54DSA(71)
Brand: Hirose Electric Co Ltd
SKU: A2-16PA-2.54DSA(71)
Price: 2.69000 USD
Availability: InStock

new-10%

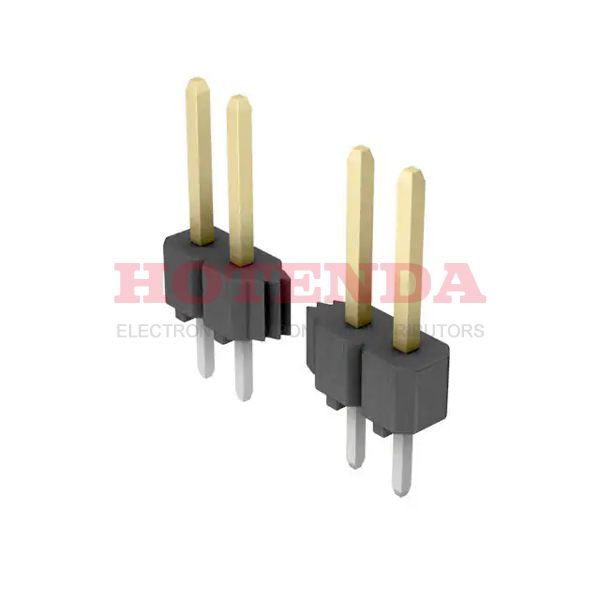

A2-16PA-2.54DSA(71)

Manufacturer part number:A2-16PA-2.54DSA(71)

Manufacturer:Hirose Electric Co Ltd

Description:A2-16PA-2.54DSA(71) datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:A2-16PA-2.54DSA(71) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Brass
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-55°C~85°C
Packaging	Bulk
Series	A2
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	16
Number of Rows	1
Voltage - Rated	200V
Additional Feature	POLARIZED
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Straight
Depth	2.54mm
Insulation Height	0.100 2.54mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Reach Compliance Code	unknown
Pitch - Mating	0.100 2.54mm
Number of Conductors	ONE
Reliability	COMMERCIAL
Contact Length - Post	0.118 3.00mm
Shrouding	Unshrouded
Number Of PCB Rows	1
Contact Finish - Post	Tin
Contact Length - Mating	0.236 6.00mm
PCB Contact Pattern	RECTANGULAR
UL Flammability Code	94V-0
Housing Color	Black
Rated Current (Signal)	3A
Overall Contact Length	0.454 11.54mm
Contact Resistance	15mOhm
Max Voltage Rating (AC)	200V
Max Current Rating	3A
Length	40.34mm
Contact Finish Thickness - Mating	8.00μin 0.203μm
Contact Finish Thickness - Post	78.7μin 2.00μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Lead Free	Lead Free

A2-16PA-2.54DSA(71) Product Details

A2-16PA-2.54DSA(71) Overview

This product is packaged in a Header carton.This device has a Through Hole mounting type.In order to package the product, a Bulk case is used.Product number A2 belongs to the A2 Series.Then there's POLARIZED, for example.Through Hole is mounting the part.-55°C~85°C Operating Temperature is used by the device.
