3560-16S(50) Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
8 Weeks
Contact Material
Copper
Contact Plating
Gold
Mount
Surface Mount, Through Hole
Mounting Type
Surface Mount, Right Angle
Housing Material
Resin
Packaging
Tray
Series
3500
Published
2005
Feature
Board Lock
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Solder
Connector Type
Multi-Purpose
Number of Positions
16
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Color
Black
Number of Rows
1
Gender
Receptacle
Voltage - Rated
125V
Pitch
800μm
Orientation
Right Angle
Depth
9.2mm
Number of Positions Loaded
10
Current Rating
1A
Contact Finish
Gold
Lead Pitch
800μm
Number of Contacts
16
Housing Color
Black
Contact Resistance
40mOhm
Max Voltage Rating (AC)
125V
Max Current Rating
1A
Connector Style
Receptacle
Number of Ports
1
Length
28mm
Contact Finish Thickness
8.00μin 0.203μm
REACH SVHC
No SVHC
Radiation Hardening
No
RoHS Status
RoHS Compliant
Lead Free
Lead Free
In-Stock:3958 items

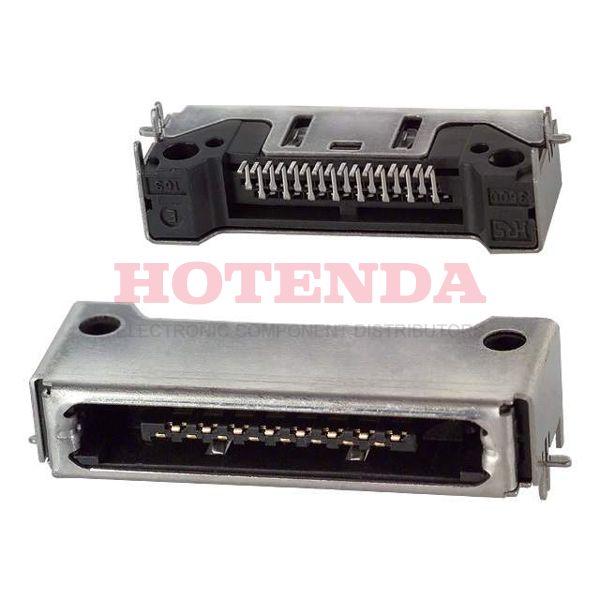

3560-16S(50) Product Details
Hirose Pluggable Connectors 3560-16S(50) are a series of multi-purpose, right angle, surface mount receptacles. They feature a compact design with a low profile of only 4.5mm, making them ideal for space-constrained applications. The connectors have a 16-pin configuration and are rated for a current of up to 2A. They are designed to be used with Hirose's DF40C series of crimp style contacts.
