Name: M80-8281822
Brand: Harwin Inc.
SKU: M80-8281822
Price: 4.40000 USD
Availability: InStock

new-10%

M80-8281822

Manufacturer part number:M80-8281822

Manufacturer:Harwin Inc.

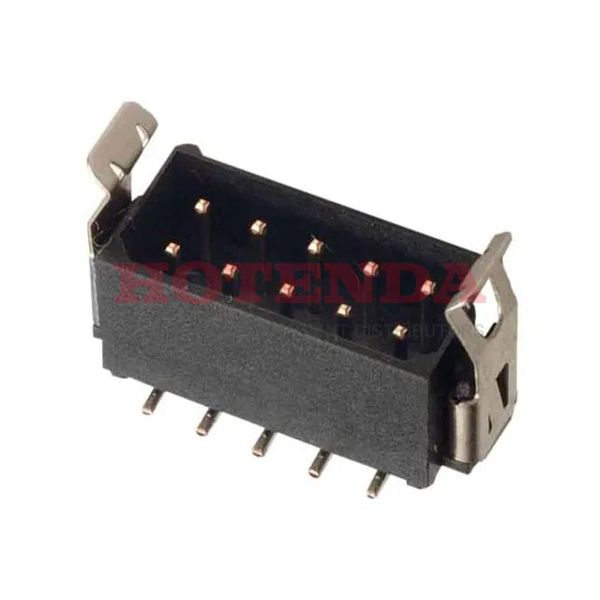

Description:Datamate L-Tek Series 2-Row Header Solder Phosphor Bronze Tube Surface Mount Gold Polyphenylene Sulfide (PPS), Glass Filled 18-Position Board to Board or Cable 0.205 5.20mm Height

Case Package:SOT-23

Datasheet:M80-8281822 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount
Contact Shape	Circular
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Housing Material	Thermoplastic
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	Datamate L-Tek
Published	2013
JESD-609 Code	e0
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	18
Number of Rows	2
Voltage - Rated	800V
Additional Feature	LATCHED
HTS Code	8536.69.40.40
Fastening Type	Latch Lock
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	2.2A
Total Number of Contacts	18
Insulation Height	0.205 5.20mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Reach Compliance Code	not_compliant
Current Rating	3A
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin-Lead
Contact Gender	Male
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	29.5μin 0.75μm
Contact Finish Thickness - Post	118.1μin 3.00μm
Stack Height (Mating)	7.85mm 8.45mm 10.5mm 14.25mm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant

M80-8281822 Product Details

M80-8281822 Overview

Packaging for this item is Header.There is a mounting type of Surface Mount for this device.It is necessary to use a Tube case for packaging the product.This product is part of the Datamate L-Tek Series.Moreover, there are a number of other features, including LATCHED, to name just a few.Surface Mount is used to mount the part.In this case, the device operates at -55°C~125°C Operating Temperature.
