Name: M50-4700845
Brand: Harwin Inc.
SKU: M50-4700845
Price: 3.48000 USD
Availability: InStock

new-10%

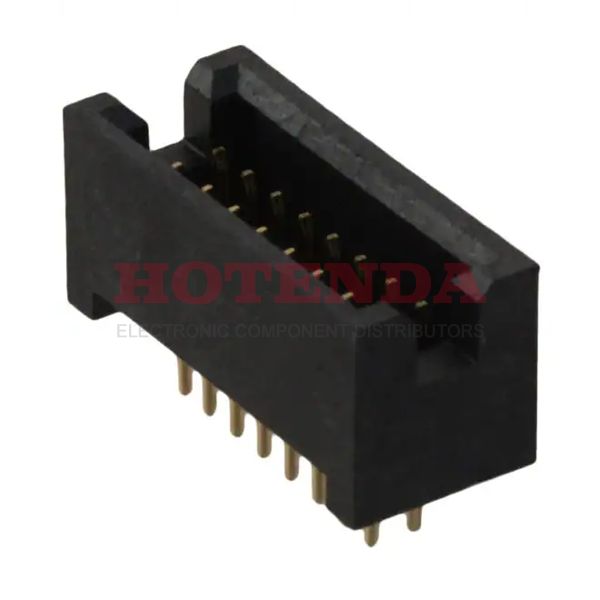

M50-4700845

Manufacturer part number:M50-4700845

Manufacturer:Harwin Inc.

Description:M50-4700845 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Harwin Inc. stock available on our website

Case Package:SOT-23

Datasheet:M50-4700845 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-40°C~105°C
Packaging	Tube
Published	2009
Series	Archer M50
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	16
Number of Rows	2
Gender	Male
Voltage - Rated	500V
Additional Feature	ROHS COMPLIANT
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	1A per Contact
Insulation Height	0.224 5.69mm
Style	Board to Board
Number of Positions Loaded	All
Current Rating	1A
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.050 (1.27mm)
Contact Length - Post	0.091 2.30mm
Shrouding	Shrouded - 4 Wall
Mating Information	MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code	94V-0
Insulation Resistance	1000000000Ohm
Mating Contact Pitch	0.05 inch
Durability	100 Cycles
Length - Termination	0.091 inch
Stack Height (Mating)	6mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

M50-4700845 Product Details

M50-4700845 Overview

Header packaging is included.A Through Hole mounting type is specified for the device.We use a Tube case to package the product.A product of the Archer M50 Series, it belongs to the range of products of that series.Among other features are ROHS COMPLIANT, to name only a few.It is mounted by Through Hole.Operating temperature is -40°C~105°C.
