Name: M40-6201546
Brand: Harwin Inc.
SKU: M40-6201546
Price: 3.12000 USD
Availability: InStock

new-10%

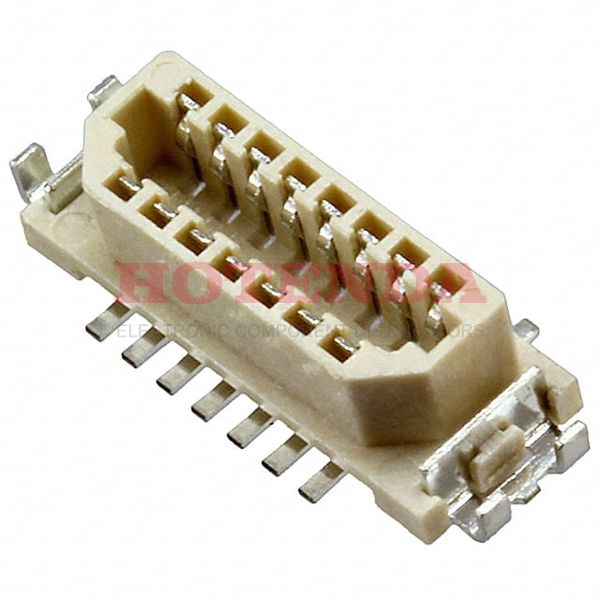

M40-6201546

Manufacturer part number:M40-6201546

Manufacturer:Harwin Inc.

Description:M40-6201546 datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Harwin Inc. stock available on our website

Case Package:SOT-23

Datasheet:M40-6201546 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Contact Material	Bronze
Mount	Surface Mount
Mounting Type	Surface Mount
Insulation Material	Nylon
Housing Material	Polyamide
Packaging	Tube
Published	2007
Series	M40
JESD-609 Code	e3
Feature	Board Guide, Solder Retention
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	15
Max Operating Temperature	125°C
Min Operating Temperature	-20°C
Number of Rows	2
Gender	Receptacle
Voltage - Rated	250V
Additional Feature	POLARIZED, STAGGERED CONFIGURATION
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.039 1.00mm
Total Number of Contacts	15
Orientation	Straight
Depth	4.2mm
Current Rating	500mA
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Tin
Voltage - Rated AC	100V
Reliability	COMMERCIAL
Number Of PCB Rows	2
Lead Pitch	1mm
PCB Contact Pattern	STAGGERED
Body Breadth	0.165 inch
UL Flammability Code	94V-0
Housing Color	Natural
Rated Current (Signal)	0.5A
Contact Resistance	50mOhm
Insulation Resistance	500MOhm
Body/Shell Style	SOCKET
Max Voltage Rating (AC)	150V
Durability	30 Cycles
Contact Pattern	STAGGERED
Length	13.1mm
Width	10.1mm
Contact Finish Thickness	80.0μin 2.03μm
Plating Thickness	80μin
Height Above Board	0.130 3.30mm
Stack Height (Mating)	4.3mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

M40-6201546 Product Details

M40-6201546 Overview

This product is packaged in a Receptacle, Outer Shroud Contacts carton.This product is packaged in a case marked Tube.There is a Surface Mount mounting type for the device.It's part of the M40 Series.In operation, Board Guide, Solder Retention may be maintained.For mounting, you'll need a Surface Mount socket.Temperatures below 125°C are best for using it.Temperature must be -20°C to operate this device.There are also features like POLARIZED, STAGGERED CONFIGURATION, just to name a few.
