Name: M20-9970246
Brand: Harwin Inc.
SKU: M20-9970246
Price: 0.45000 USD
Availability: InStock

new-10%

M20-9970246

Manufacturer part number:M20-9970246

Manufacturer:Harwin Inc.

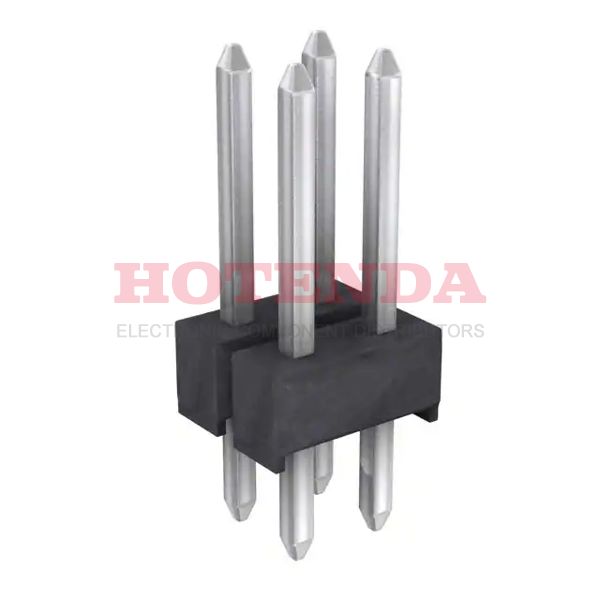

Description:M20 Series 2-Row Header, Cuttable Solder Brass Bulk Through Hole Tin Polyamide (PA6T), Nylon 6T 4-Position Board to Board or Cable 0.100 2.54mm Height

Case Package:SOT-23

Datasheet:M20-9970246 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Contact Material	Brass
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA6T), Nylon 6T
Operating Temperature	-40°C~105°C
Packaging	Bulk
Published	2009
Series	M20
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header, Cuttable
Number of Positions	4
Number of Rows	2
Additional Feature	ROHS COMPLIANT
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3A per Contact
Insulation Height	0.100 2.54mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.116 2.95mm
Shrouding	Unshrouded
Number Of PCB Rows	1
Contact Length - Mating	0.335 8.51mm
Body Depth	0.1 inch
Overall Contact Length	0.551 14.00mm
Contact Resistance	30mOhm
Insulation Resistance	1000000000Ohm
Mating Contact Pitch	0.1 inch
Dielectric Withstanding Voltage	750VAC V
Durability	50 Cycles
Length - Termination	0.117 inch
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

M20-9970246 Product Details

M20-9970246 Overview

The product comes in a package of Header, Cuttable.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the M20 Series.Among other features are ROHS COMPLIANT, to name only a few.It is mounted by Through Hole.It operates at an operating temperature of -40°C~105°C.
