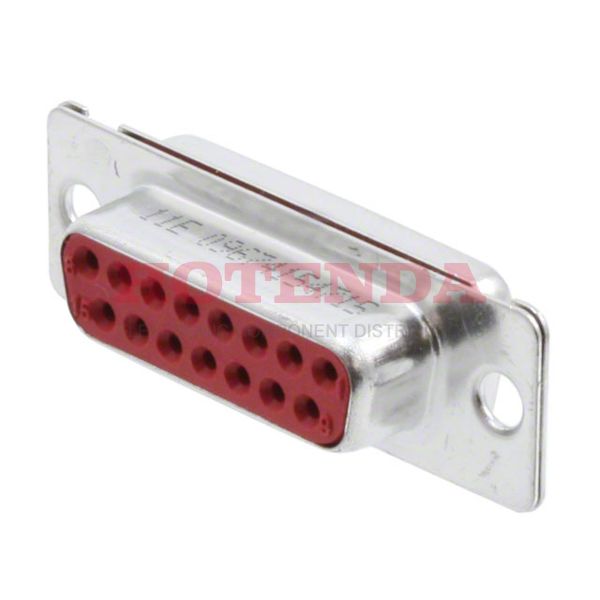

Name: 09674154715
Brand: HARTING
SKU: 09674154715
Price: 22.71000 USD
Availability: InStock

new

09674154715

Manufacturer part number:09674154715

Manufacturer:HARTING

Description:D-Sub Receptacle, Female Sockets 15-Position Receptacle Signal Solder Cup 2 DA A Free Hanging (In-Line) Copper Alloy Gold or Gold-Palladium Brass, Tin Plated

Case Package:SOT-23

Datasheet:09674154715 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Contact Material	Copper Alloy
Contact Plating	Gold
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Dielectric Material	Thermoplastic, Glass Filled
Housing Material	Glass
Shell Material, Finish	Brass, Tin Plated
Operating Temperature	-25°C~70°C
Packaging	Bulk
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder Cup
Connector Type	Receptacle, Female Sockets
Number of Positions	15
Number of Rows	2
Gender	Receptacle
Additional Feature	PANEL MOUNTABLE
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Signal
Mixed Contacts	NO
Total Number of Contacts	15
Orientation	Straight
Ingress Protection	IP67 - Dust Tight, Waterproof
Current Rating	5A
Shell Finish	NICKEL
Contact Finish	Gold or Gold-Palladium
Mating Information	MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code	94V-0
Empty Shell	NO
Wire Gauge	20 AWG
Flange Feature	Housing/Shell (Unthreaded)
Connector Style	D-Sub
Contact Form	Machined
Shell Size, Connector Layout	2 DA A
Contact Finish Thickness	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Ratings	Dust Tight, IP67, Waterproof

09674154715 Product Details

09674154715 Overview

The product comes in a package of Receptacle, Female Sockets.Mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.Among other features are PANEL MOUNTABLE, to name only a few.Mounted by Free Hanging.As a result, the device runs at -25°C~70°C Operating Temperature.
